MAP Sensor Removal And Installation: Installation

  1. MAP Sensor - Install

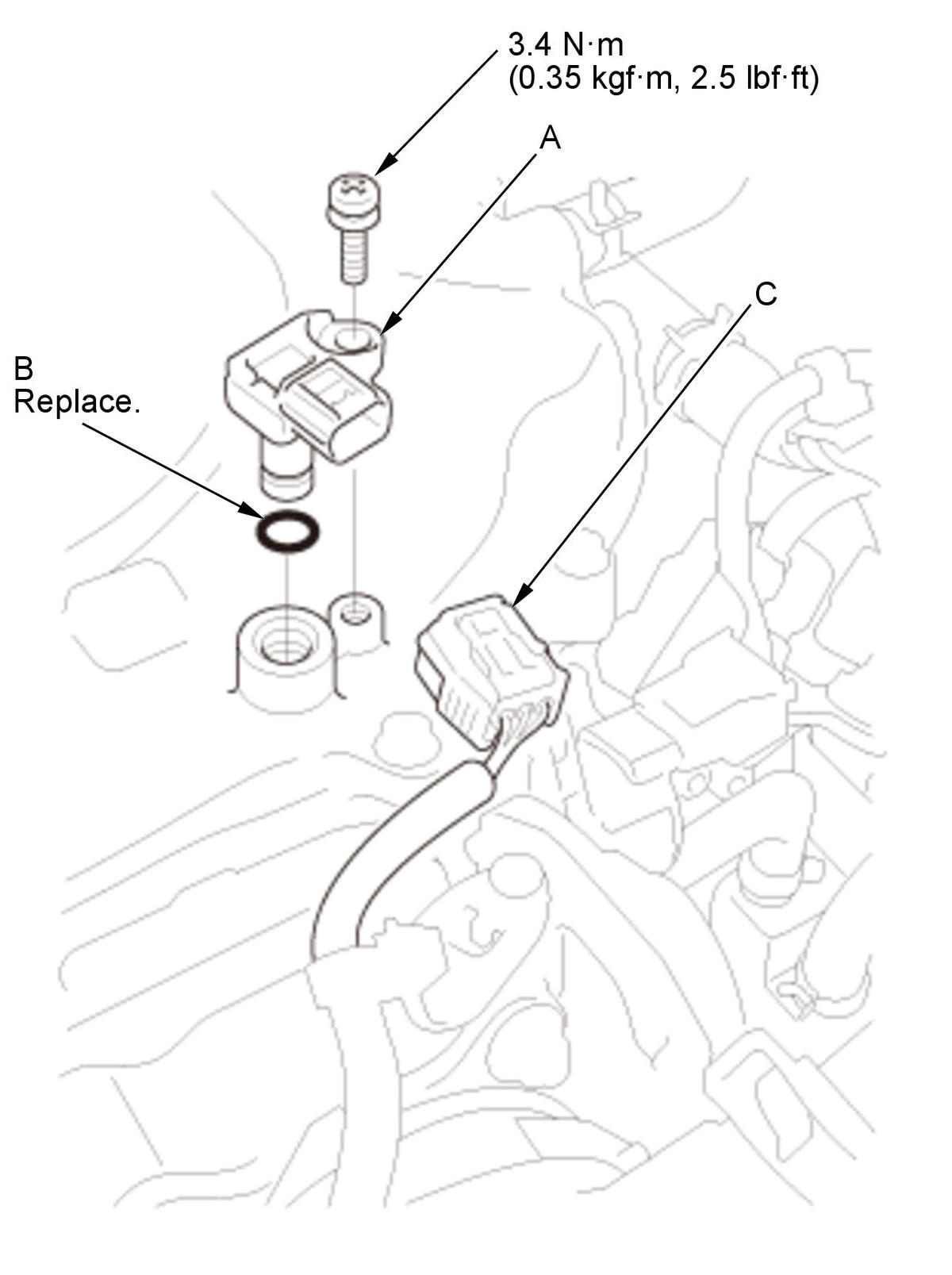

    GHH346065Courtesy of HONDA, U.S.A., INC.
    		 1. Install the MAP sensor (A) with a new O-ring (B).

    2. Connect the MAP sensor connector (C).
  2. Engine Cover - Install

    Install the engine cover .
