FTP Sensor Removal And Installation: Installation

  1. FTP Senor - Install

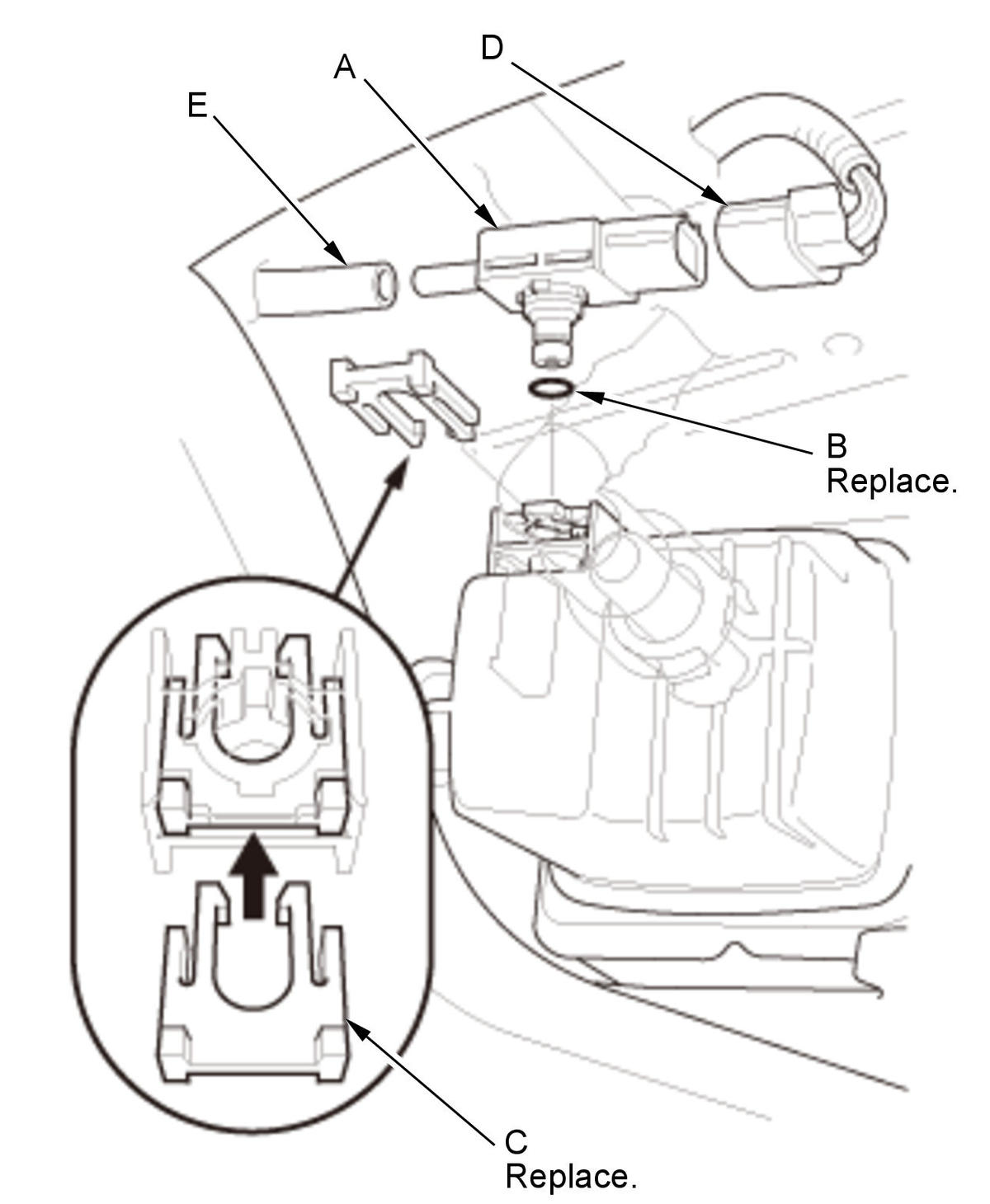

    GHH346018Courtesy of HONDA, U.S.A., INC.
    		 1. Install the FTP sensor (A) with a new O-ring (B) and a new retainer (C).

    2. Connect the FTP sensor connector (D) and the hose (E).
  2. EVAP Canister - Install

    Install the EVAP canister .
