Steering Angle Sensor Neutral Position Clear (2013-18): Procedure

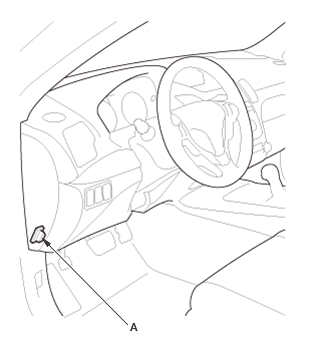

  1. HDS DLC - Connect
    GHH77561Courtesy of HONDA, U.S.A., INC.
    1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
    2. Press the engine start/stop button to select the ON mode.
    3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting - Refer to: DLC Circuit Troubleshooting (2013-15), or DLC Circuit Troubleshooting (2016-17) .
  2. Steering Angle Sensor Neutral Position - Clear

    NOTE: The steering angle sensor neutral position must be cleared whenever the steering joint, the steering wheel, or the steering angle sensor is removed or if the front toe is adjusted.

    1. Select EPS ADJUSTMENT, then select EPS STEERING ANGLE SENSOR VALUE CLEAR and follow the screen prompts on the HDS.

    NOTE: See the HDS Help menu for specific instructions.
