HandsFreeLink Control Unit (AcuraLink) Connector End View

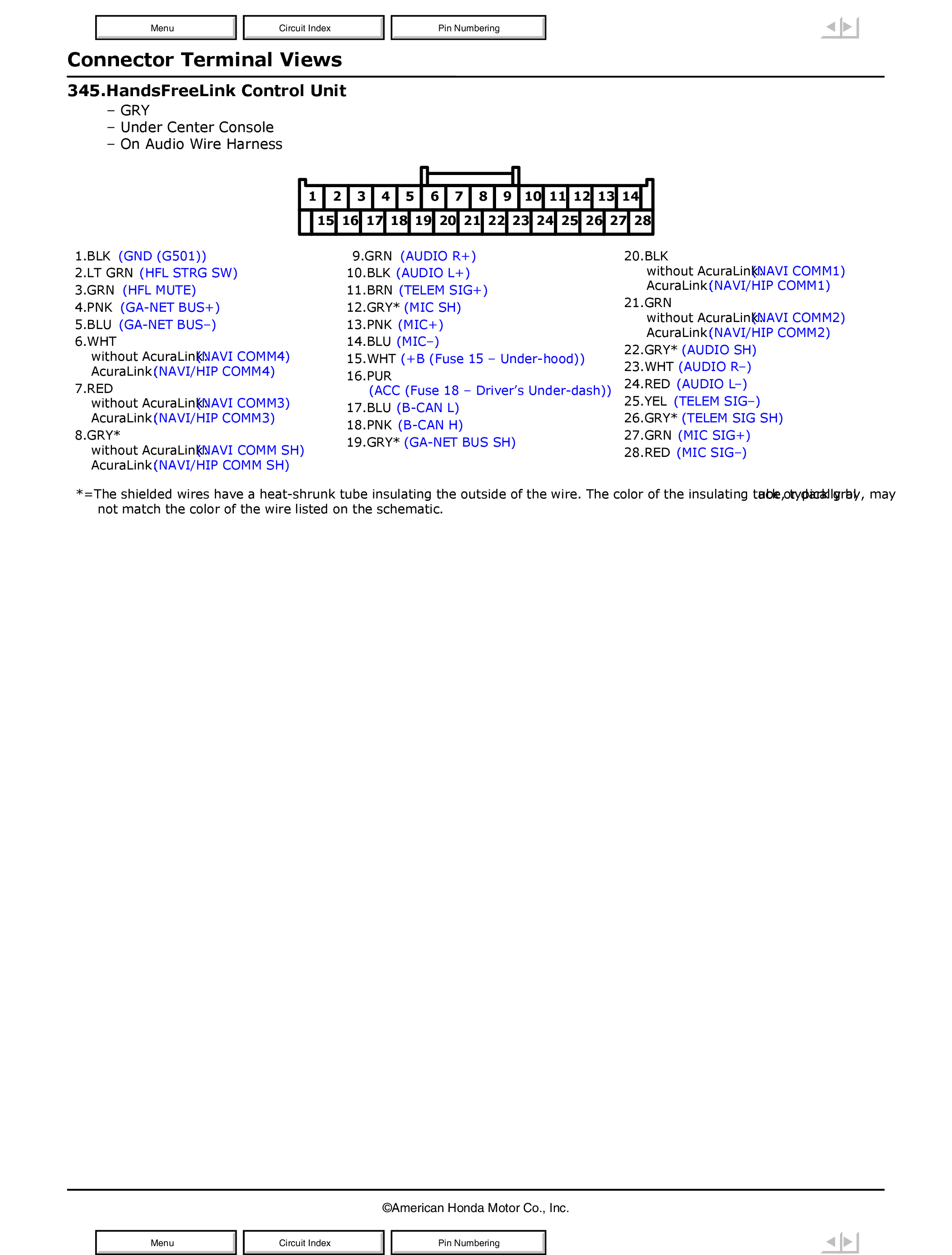

Fig 1: HandsFreeLink Control Unit (AcuraLink) Connector End View

GHHW13201

Courtesy of AMERICAN HONDA MOTOR CO., INC.
