Front A/F Sensor (Bank 2, Sensor 1) Connector End View

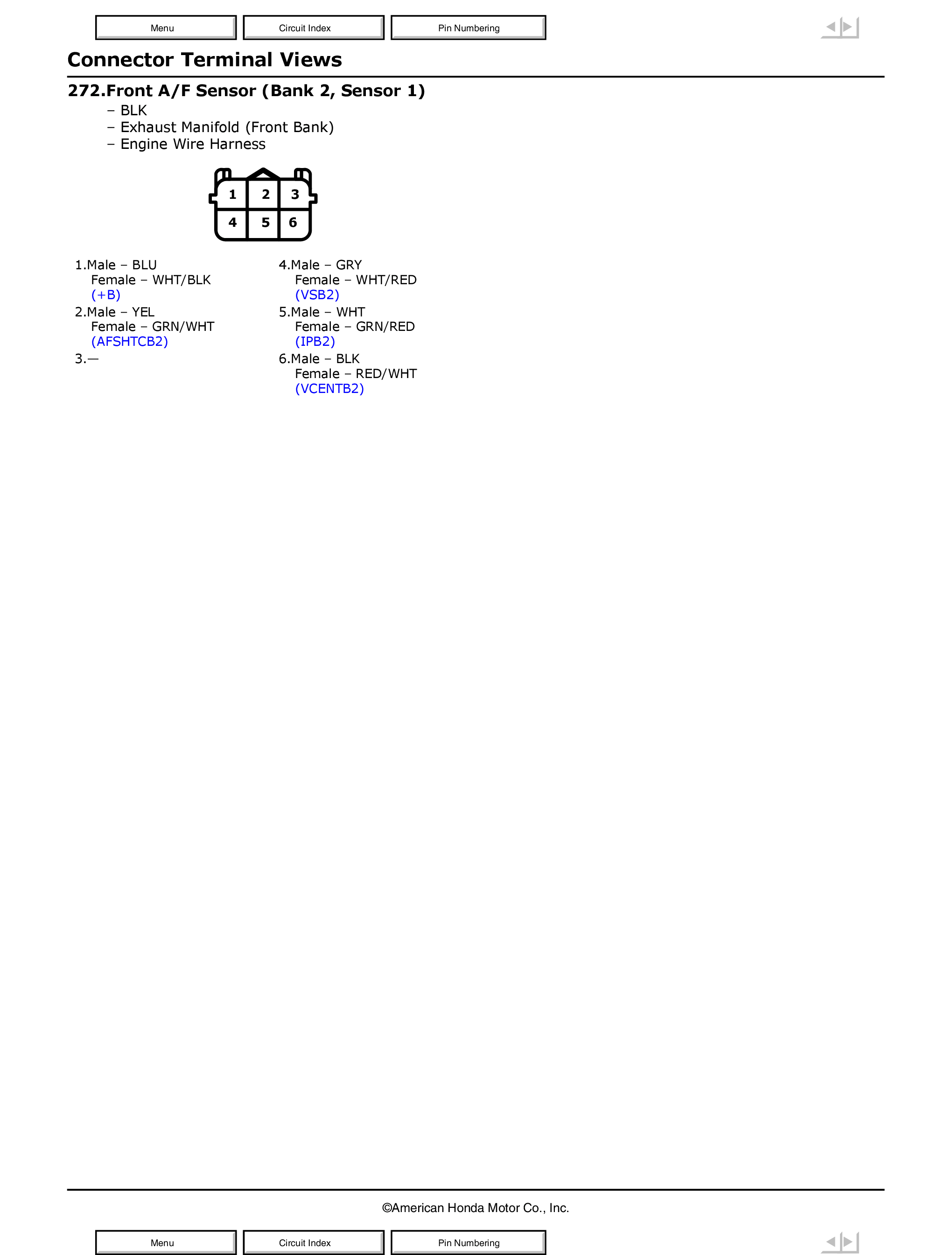

Fig 1: Front A/F Sensor (Bank 2, Sensor 1) Connector End View

GHHW12682

Courtesy of AMERICAN HONDA MOTOR CO., INC.
