Acura
>>
2012
>>
ZDX
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Navigation System
>>
System Description
>>
System Diagram
>>
USA Models
USA Models

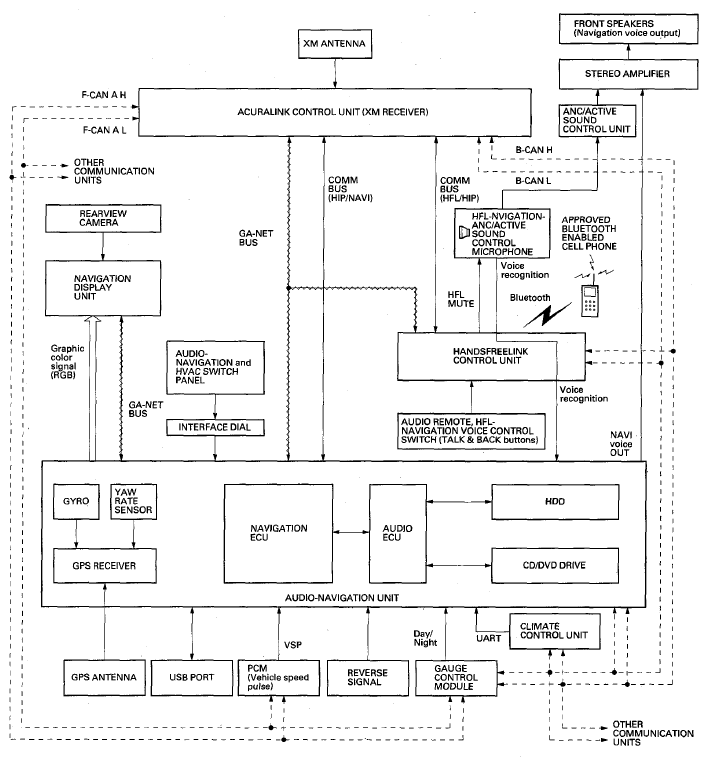

Fig 1: Navigation System Diagram - USA Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
