Output Shaft (Countershaft)

Speed Sensor This sensor detects countershaft speed.

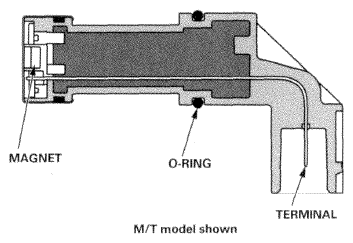

Fig 1: Identifying Output Shaft (Countershaft) Speed Sensor

G08069312

Courtesy of AMERICAN HONDA MOTOR CO., INC.
