Home >> Acura >> 2012 >> RL >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Fluid Leakage Inspection

Fluid Leakage Inspection

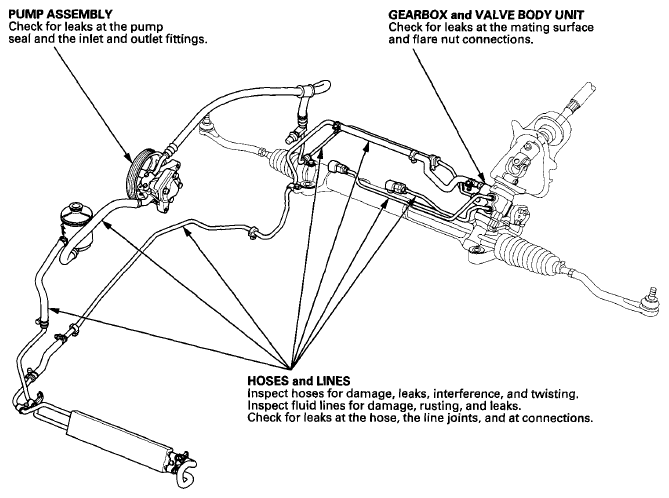

Fig 1: Identifying Fluid Leakage Points

G07363003

Courtesy of AMERICAN HONDA MOTOR CO., INC.
