Left Power Mirror Connector End View (View 385)
Left Power Mirror Connector End View (View 385)
WHT
Driver's door
On driver's door wire harness A

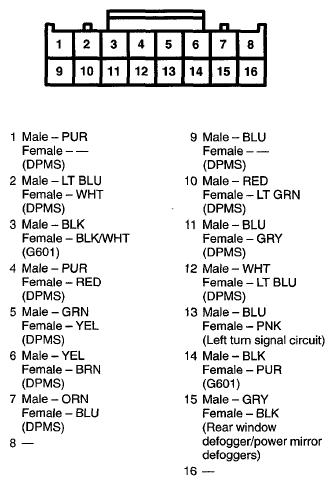

Fig 1: Left Power Mirror Connector Terminals (View 385)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
