Driver's Under-Dash Fuse/Relay Box Connector A Connector End View (View 437)

Behind left kick panel
Connector A
- LT GRN
- On dashboard wire harness (left branch)

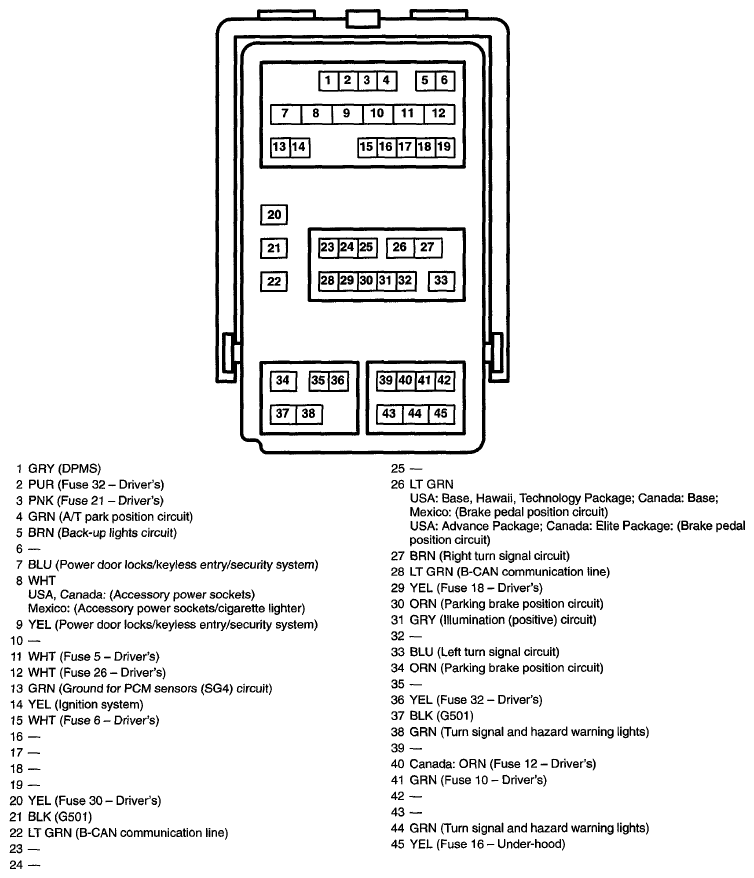

  Fig 1: Driver's Under-Dash Fuse/Relay Box Connector A Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- LT GRN
- On engine compartment wire harness (dash branch)

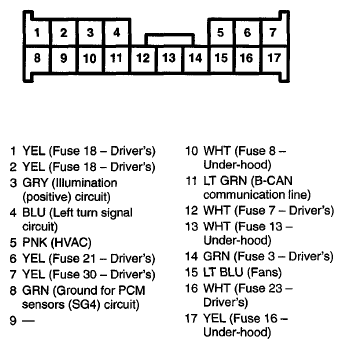

  Fig 2: Driver's Under-Dash Fuse/Relay Box Connector B Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- LT GRN
- On engine compartment wire harness (dash branch)

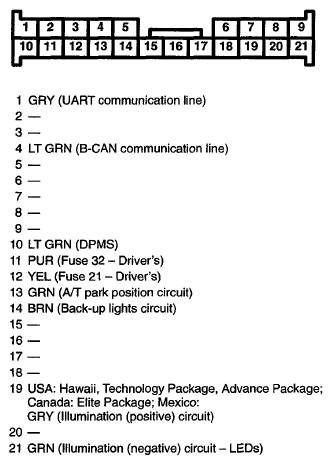

  Fig 3: Driver's Under-Dash Fuse/Relay Box Connector C Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector D
- LT GRN
- On engine compartment wire harness (dash branch)

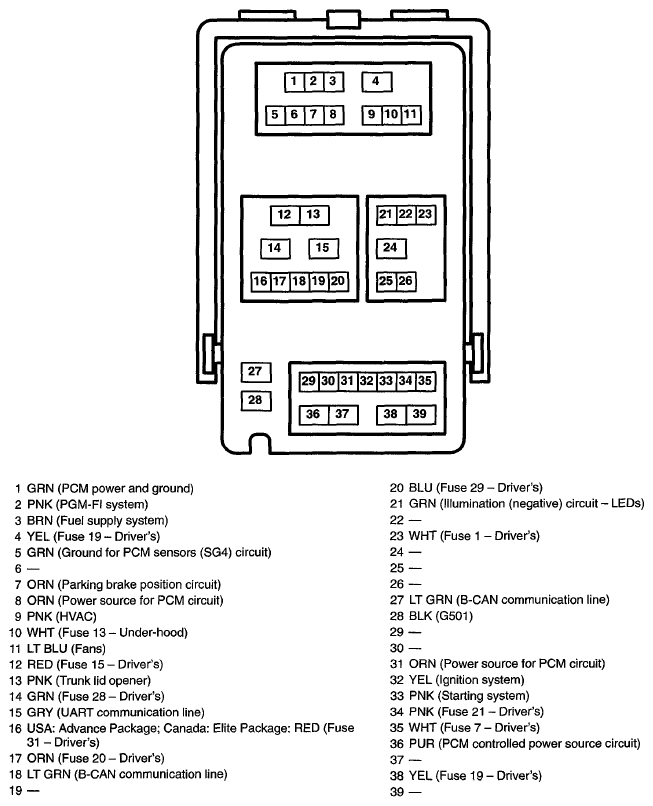

  Fig 4: Driver's Under-Dash Fuse/Relay Box Connector D Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector E
- LT GRN
- On left side wire harness (front branch)

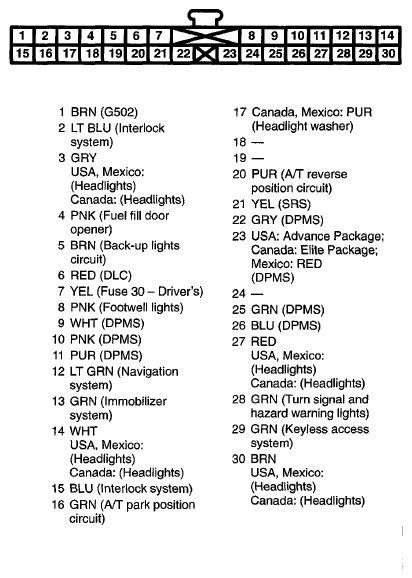

  Fig 5: Driver's Under-Dash Fuse/Relay Box Connector E Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector F
- LT GRN
- On left side wire harness (front branch)

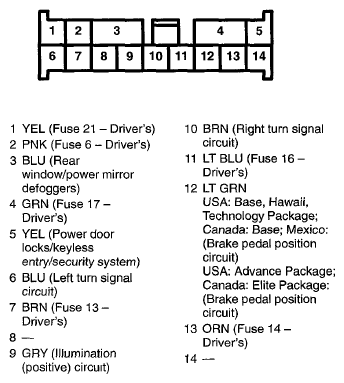

  Fig 6: Driver's Under-Dash Fuse/Relay Box Connector F Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector G
- LT GRN
- On left side wire harness (front branch)

  Fig 7: Driver's Under-Dash Fuse/Relay Box Connector G Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector H
- LT GRN
- On left side wire harness (front branch)

  Fig 8: Driver's Under-Dash Fuse/Relay Box Connector H Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector J
- LT GRN
- On left side wire harness (front branch)

  Fig 9: Driver's Under-Dash Fuse/Relay Box Connector J Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector K
- LT GRN
- On driver's door sub-harness

  Fig 10: Driver's Under-Dash Fuse/Relay Box Connector K Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector N
- WHT
- On dashboard wire harness (left branch)

  Fig 11: Driver's Under-Dash Fuse/Relay Box Connector N Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector P (MICU)
- GRN
- On dashboard wire harness (left branch)

  Fig 12: Driver's Under-Dash Fuse/Relay Box Connector P (MICU) Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector Q (MICU)
- GRN
- On left side wire harness (front branch)

  Fig 13: Driver's Under-Dash Fuse/Relay Box Connector Q (MICU) Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector R (Not used)

Connector S
- YEL
- On dashboard wire harness (left branch)

  Fig 14: Driver's Under-Dash Fuse/Relay Box Connector S Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = Wire colors may be substituted for SRS circuits

Connector T
- LT GRN
- On dashboard wire harness (left branch)

  Fig 15: Driver's Under-Dash Fuse/Relay Box Connector T Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector W
- GRN
- On left side wire harness (front branch)

  Fig 16: Driver's Under-Dash Fuse/Relay Box Connector W Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector X
- LT GRN/WHT
- On dashboard wire harness (left branch)

  Fig 17: Driver's Under-Dash Fuse/Relay Box Connector X Terminals (View 437)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
