Driver's Power Seat Control Unit Connector A Connector End View (View 435)

Under driver's seat
On driver's seat wire harness
Connector A
- GRY

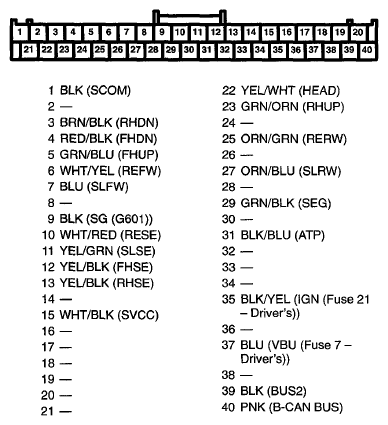

  Fig 1: Driver's Power Seat Control Unit Connector A Terminals (View 435)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- GRY/WHT

  Fig 2: Driver's Power Seat Control Unit Connector B Terminals (View 435)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
