Dust and Pollen Filter Replacement

  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the dust and pollen filter assembly (A) from the blower unit.

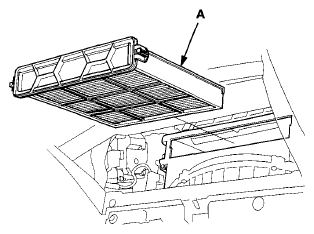

    Fig 1: Removing Dust And Pollen Filter Assembly From Blower Unit
    G07354765Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the filter (A) from the housing (B), and replace the filter.

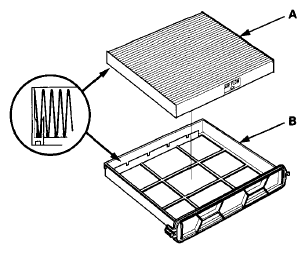

    Fig 2: Removing Filter From Housing
    G07354766Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the filter in the reverse order of removal. Make sure that there is no air leaking out of the blower unit.
