Fuel and Emissions System Diagram

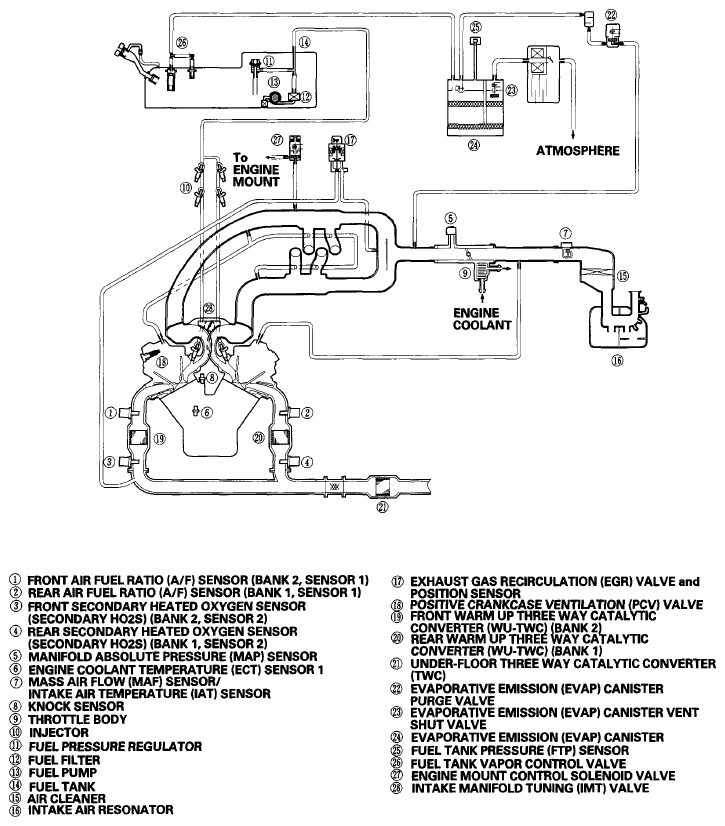

Fig 1: Fuel And Emissions System Diagram

G07361771

Courtesy of AMERICAN HONDA MOTOR CO., INC.
