Acura
>>
2012
>>
RL
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
HOMELINK Remote Control System
>>
Circuit Diagram
Circuit Diagram

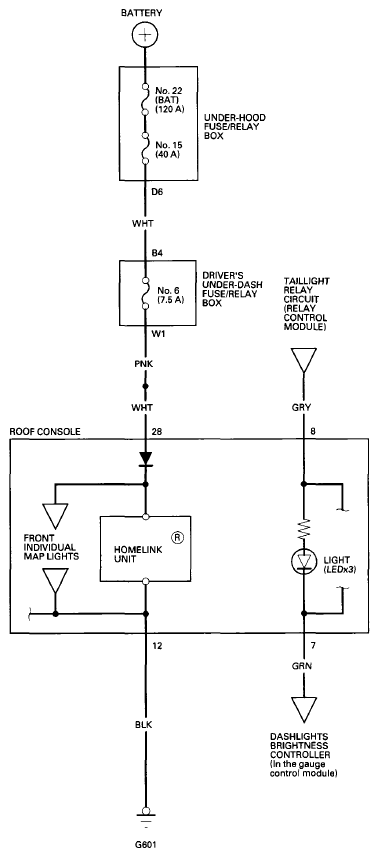

Fig 1: Homelink Remote Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
