Transmission Range Switch (except Base) Connector End View

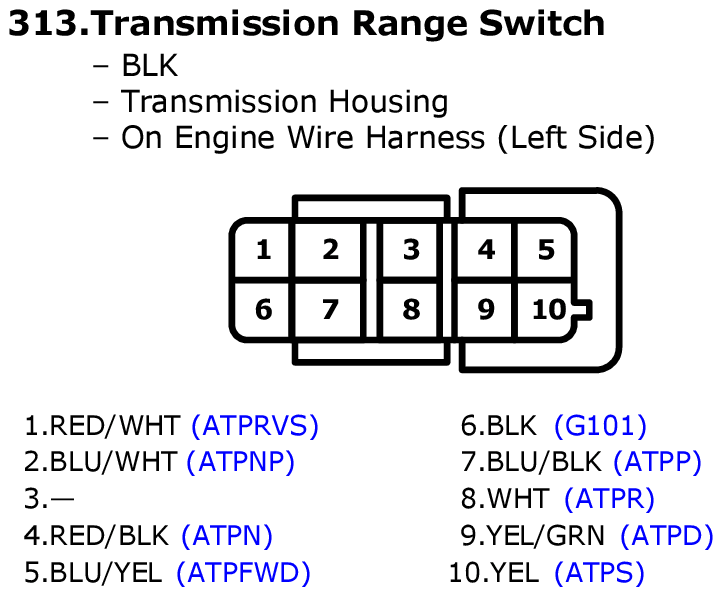

Fig 1: Transmission Range Switch (except Base) Connector End View

GHHW8175

Courtesy of AMERICAN HONDA MOTOR CO., INC.
