Right Rear Vertical Acceleration Sensor Connector End View
Right Rear Vertical Acceleration Sensor Connector End View

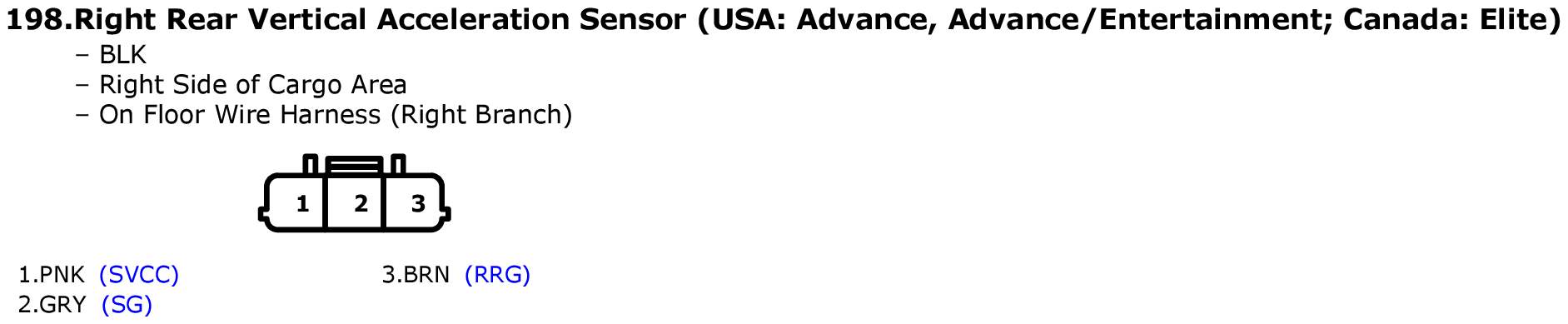

Fig 1: Right Rear Vertical Acceleration Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
