Rearview Camera (except Base) Connector End View

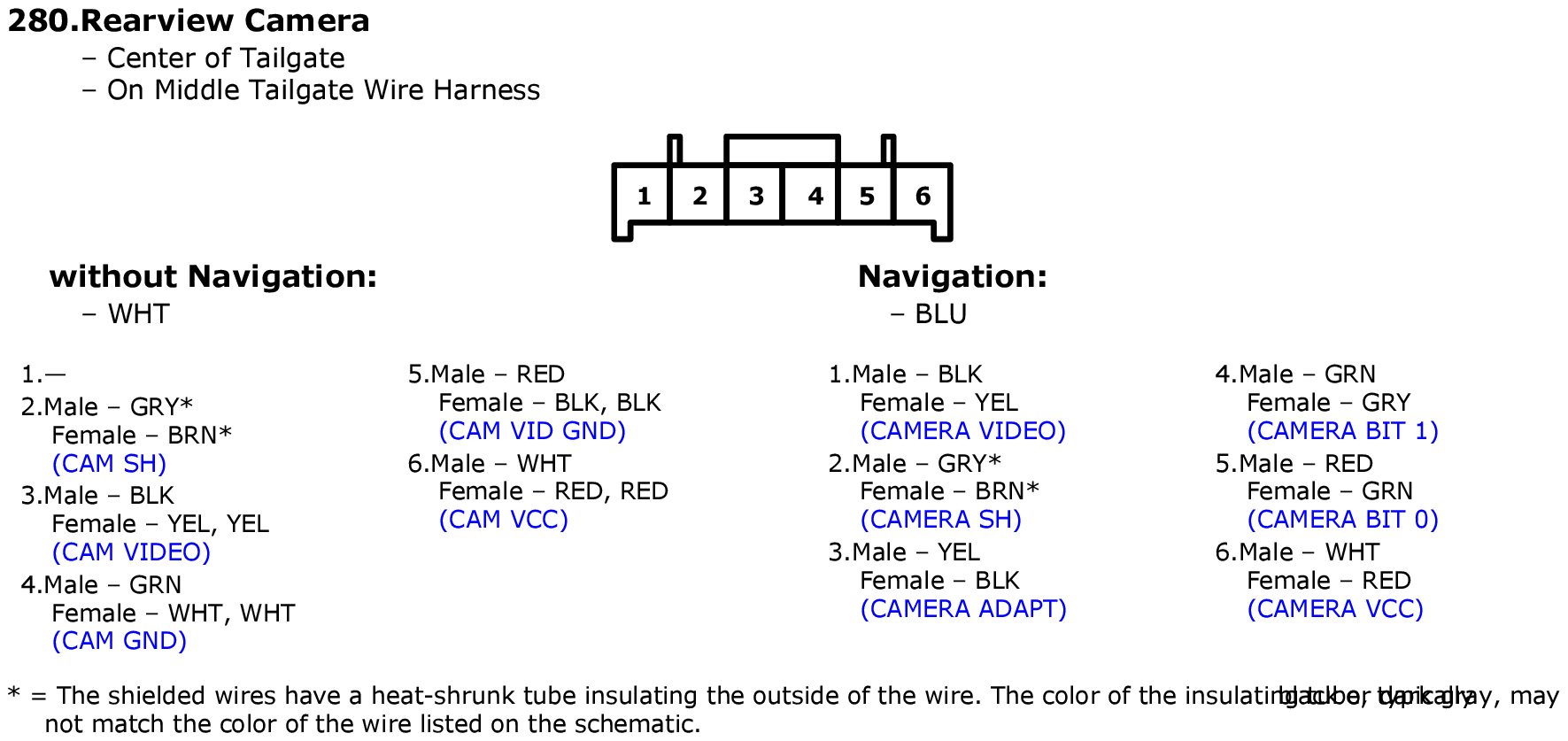

Fig 1: Rearview Camera (except Base) Connector End View

GHHW8142

Courtesy of AMERICAN HONDA MOTOR CO., INC.
