Paddle Shifters Connector End View
Paddle Shifters Connector End View

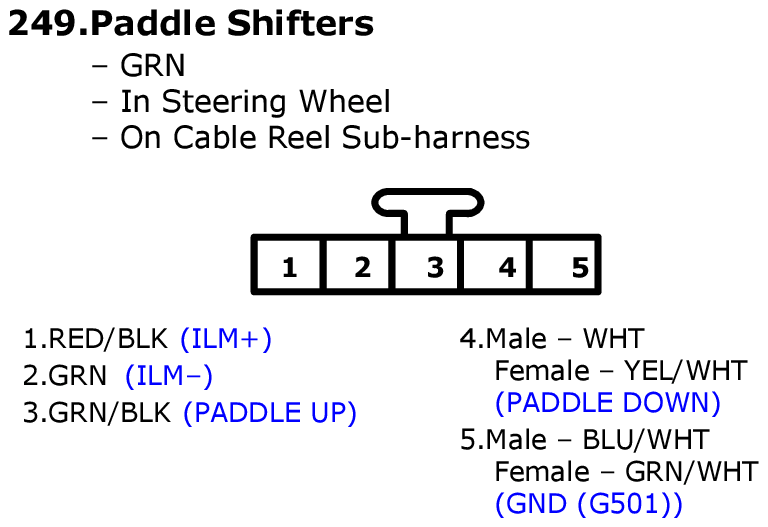

Fig 1: Paddle Shifters Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
