Navigation Display Unit (USA: except Base) Connector End View

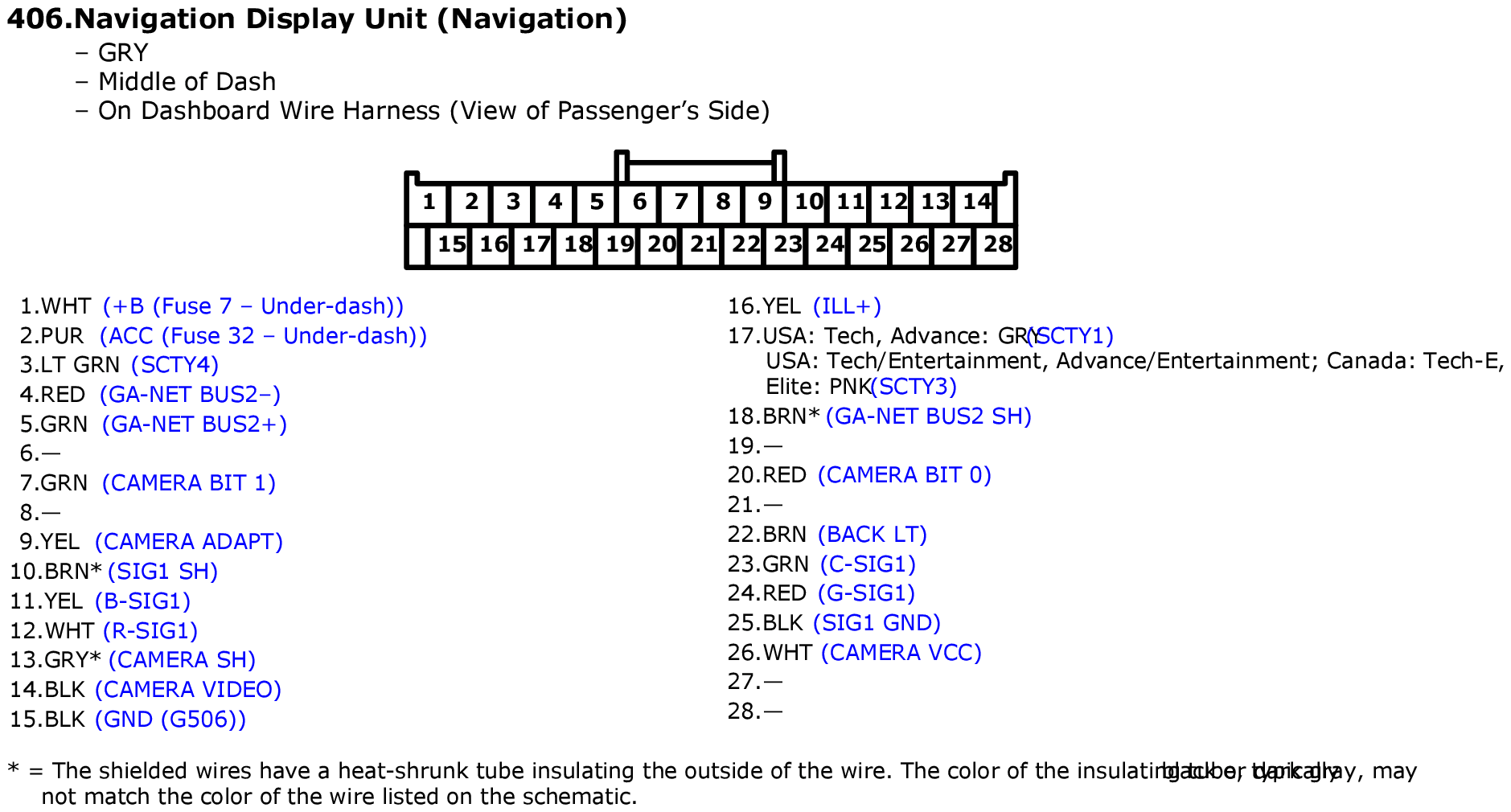

Fig 1: Navigation Display Unit (USA: except Base) Connector End View

GHHW8267

Courtesy of AMERICAN HONDA MOTOR CO., INC.
