HFL-Navigation Microphone (except Base) Connector End View

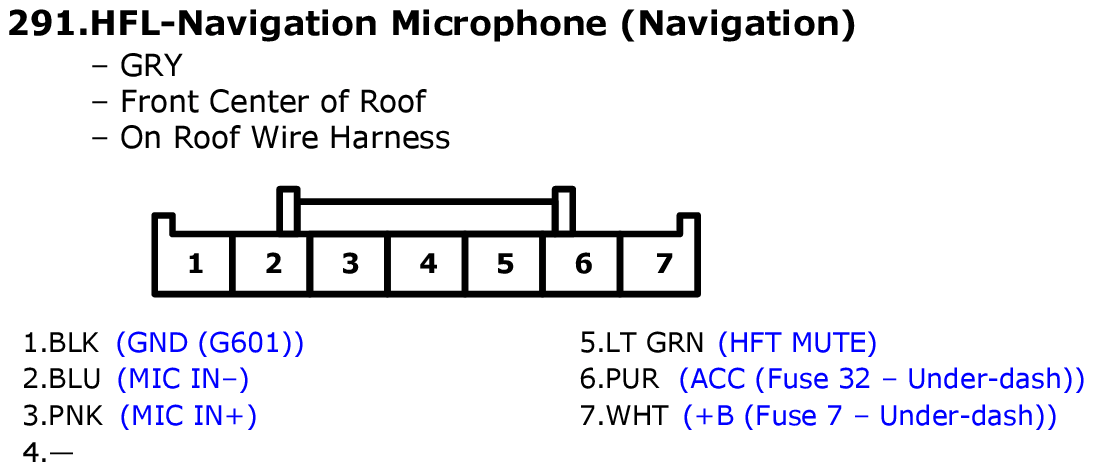

Fig 1: HFL-Navigation Microphone (except Base) Connector End View

GHHW8153

Courtesy of AMERICAN HONDA MOTOR CO., INC.
