AcuraLink Reprogramming Connector (C620) (USA: except Base) Connector End View
AcuraLink Reprogramming Connector (C620) (USA: except Base) Connector End View

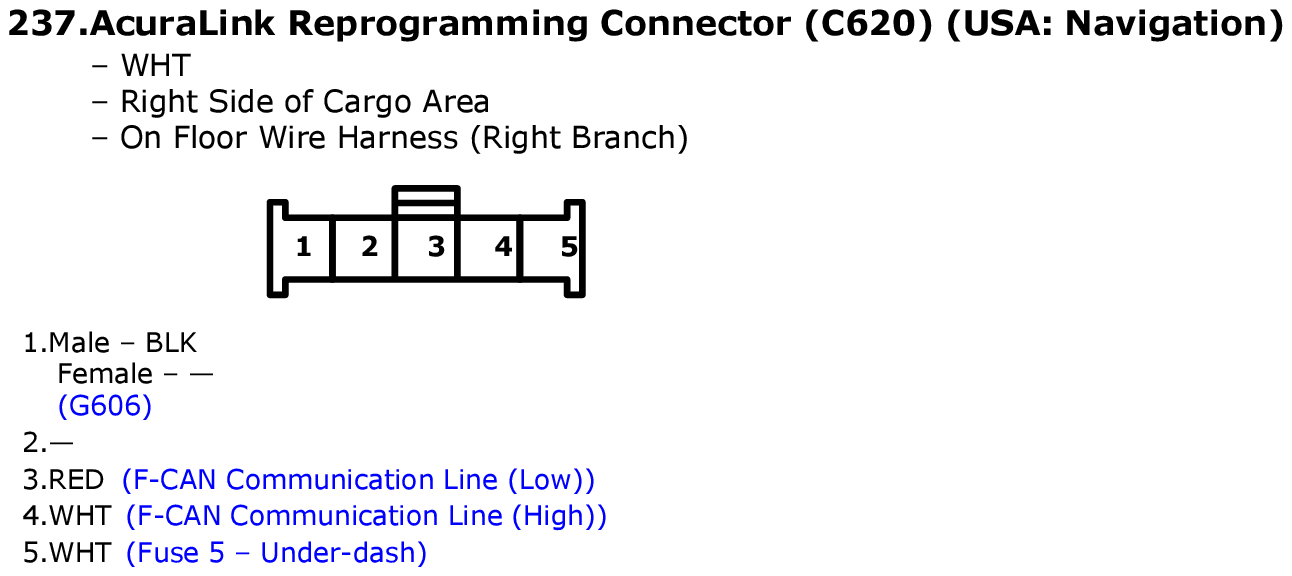

Fig 1: AcuraLink Reprogramming Connector (C620) (USA: except Base) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
