AC Inverter Unit Connector End View
AC Inverter Unit Connector End View

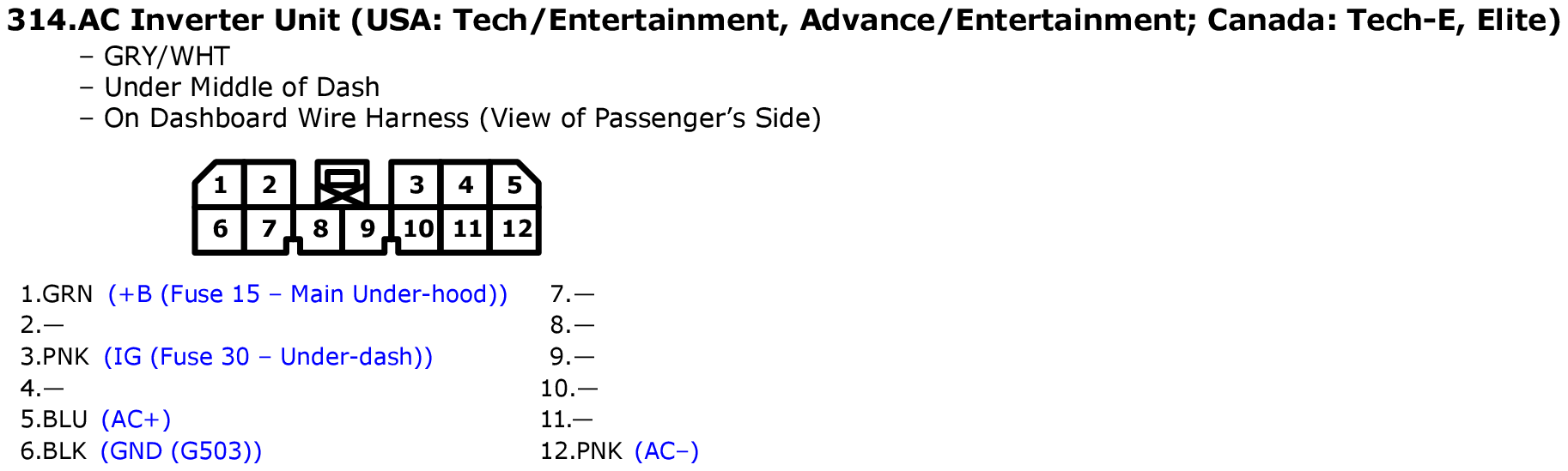

Fig 1: AC Inverter Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
