Remote Starting Control Unit (Acura Accessory: Remote Starting System) Connector End View
Remote Starting Control Unit (Acura Accessory: Remote Starting System) Connector End View

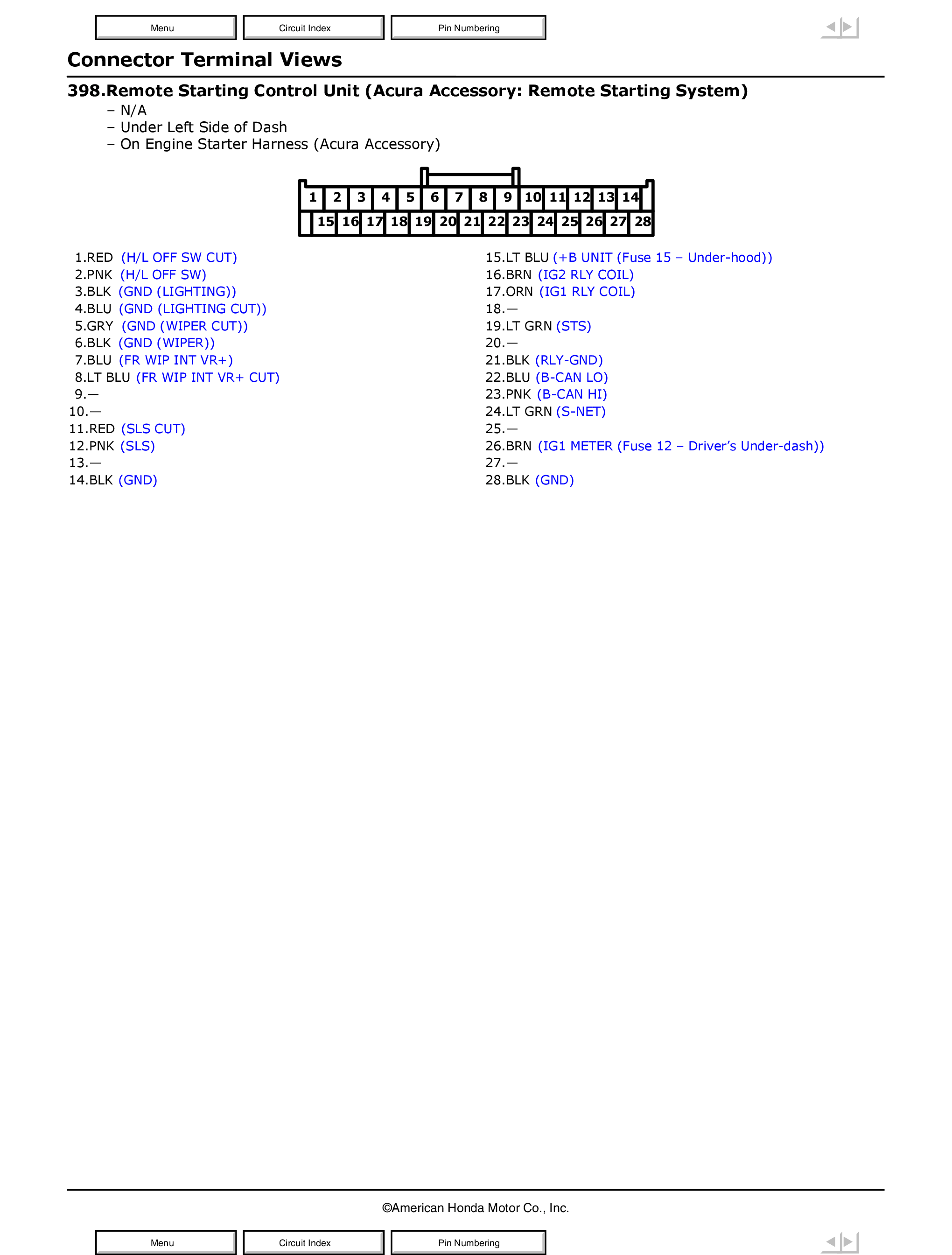

Fig 1: Remote Starting Control Unit (Acura Accessory: Remote Starting System) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
