Audio-Navigation and HVAC Switch Panel Connector End View

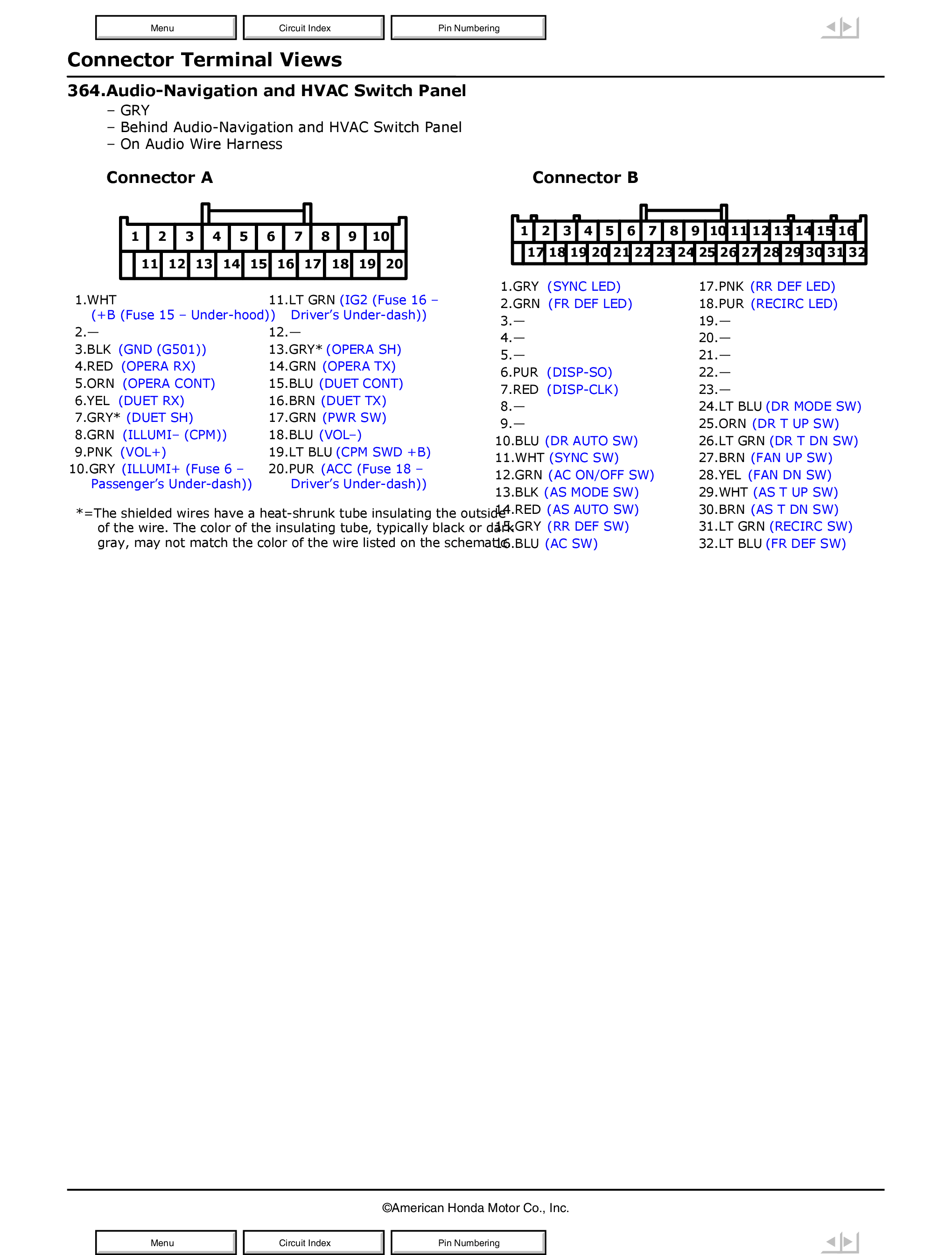

Fig 1: Audio-Navigation and HVAC Switch Panel Connector End View

GHHW13220

Courtesy of AMERICAN HONDA MOTOR CO., INC.
