C701 Connector End View (View 298)
C701 Connector End View (View 298)
WHT
Under Driver's Seat
Connects Driver's Seat Wire Harness to SRS Floor Wire Harness

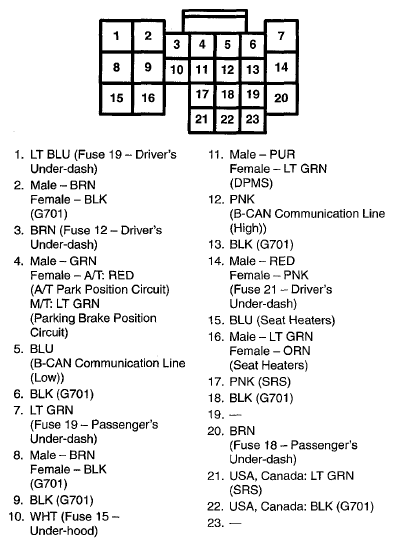

Fig 1: C701 Connector Terminal (View 298)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
