DTC P0776: A/T Clutch Pressure Control Solenoid Valve B Stuck OFF: Notes

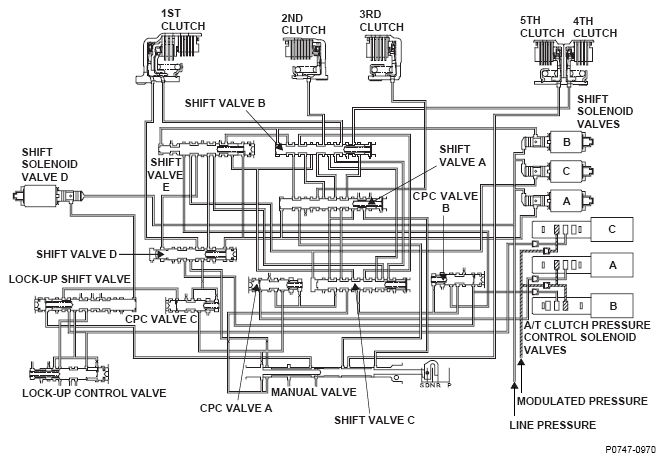

Fig 1: A/T Clutch Pressure Control Solenoid Valve B Stuck OFF - System Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

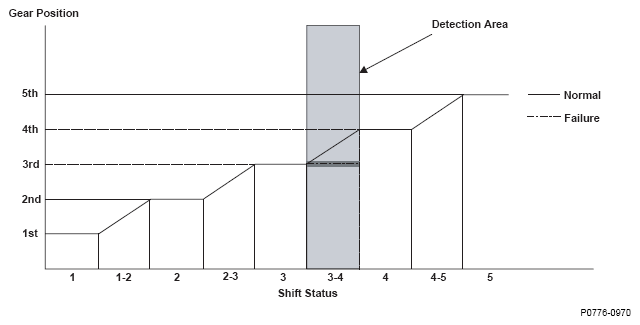

Fig 2: Gear Position Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

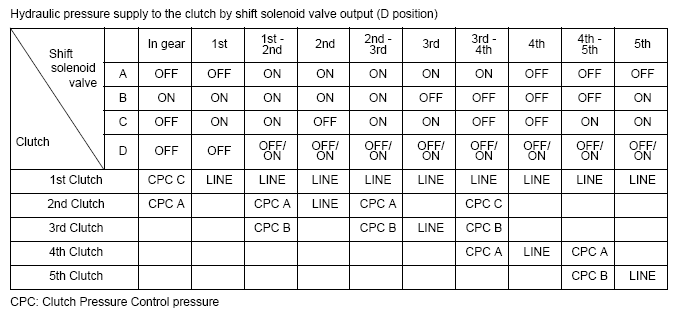

Hydraulic pressure supply to the clutch by shift solenoid valve output (D position)

Fig 3: Shift Solenoid Valve And Clutch Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CPC: Clutch Pressure Control pressure
