Low Oil Pressure Indicator Circuit Diagram
>>
With Keyless Access System
With Keyless Access System

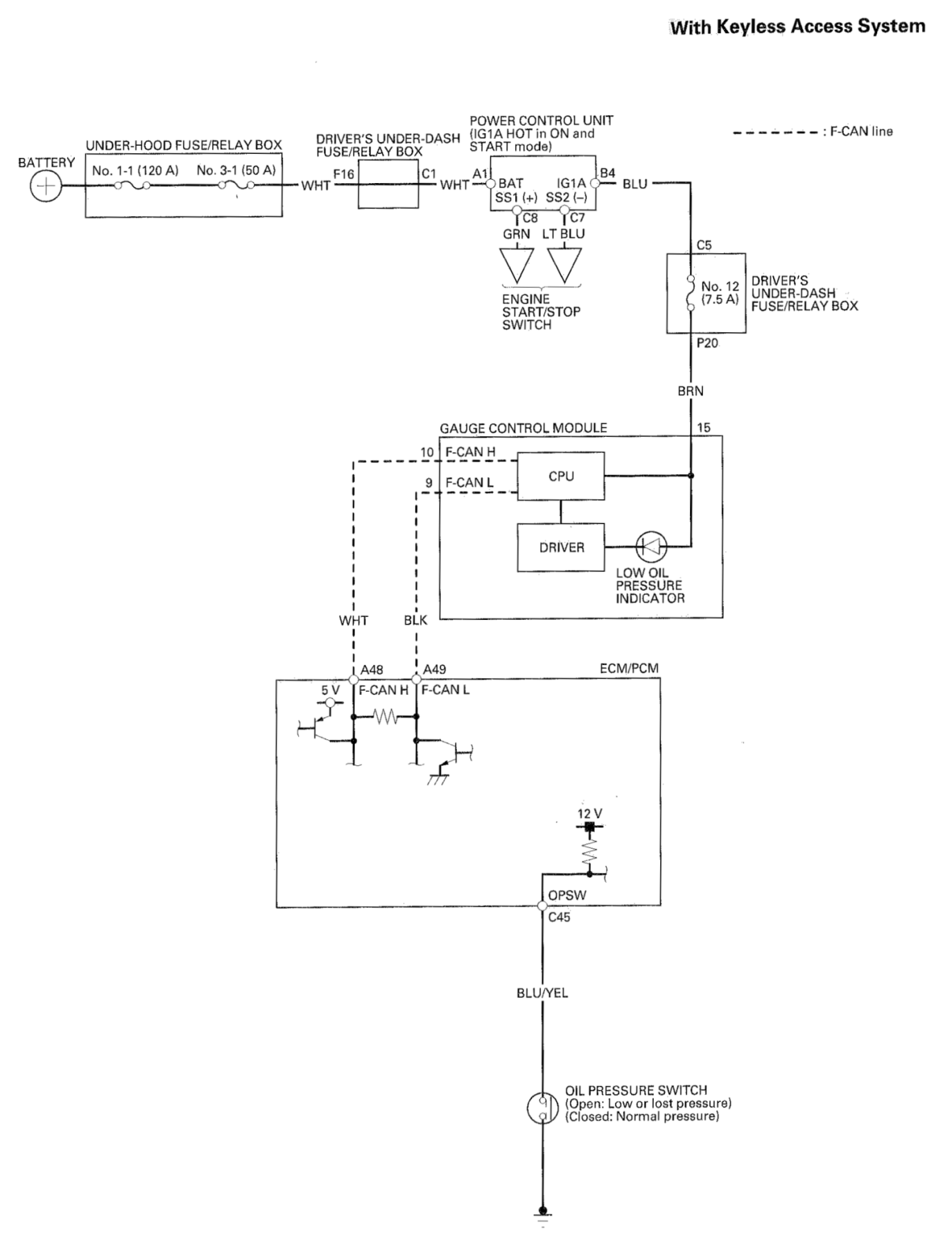

Fig 1: Low Oil Pressure Indicator Circuit Diagram (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTORS CO., INC.
Courtesy of AMERICAN HONDA MOTORS CO., INC.
