USB Adapter Unit Connector End View (Without Navigation) (View 348)

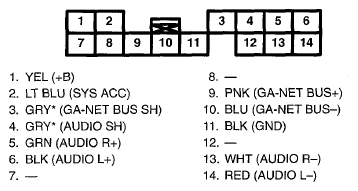

Connector A

• WHT
• On Dashboard Wire Harness
  Fig 1: USB Adapter Unit Connector Terminal (without Navigation) (Connector A) (View 348)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

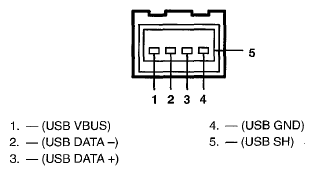

Connector B

• GRY
• On USB Adapter Sub-harness
  Fig 2: USB Adapter Unit Connector Terminal (without Navigation) (Connector B) (View 348)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
