Right Rear Power Window Switch Connector End View (View 278)
Right Rear Power Window Switch Connector End View (View 278)
GRY
Right Rear Door
On Right Rear Door Wire Harness

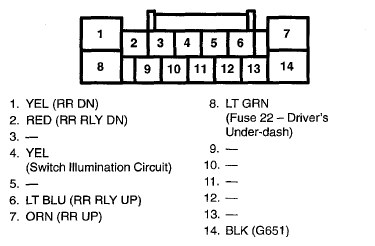

Fig 1: Right Rear Power Window Switch Connector Terminal (View 278)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
