Center Junction Box Connector End View (View 324)

Under Left Side of Dash
On Dashboard Wire Harness
Connector A
- GRY

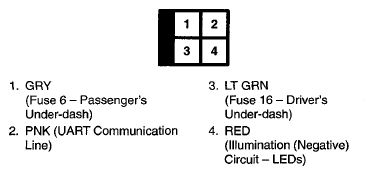

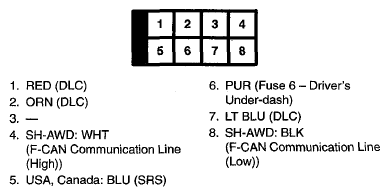

  Fig 1: Center Junction Box Connector Terminal (Connector A) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- BLU

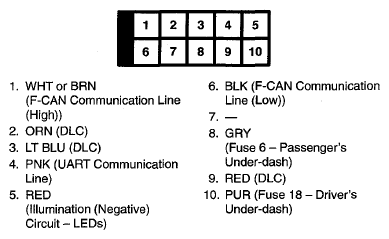

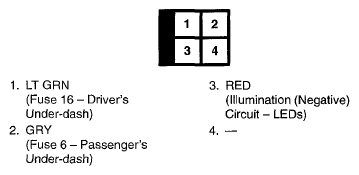

  Fig 2: Center Junction Box Connector Terminal (Connector B) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- BRN

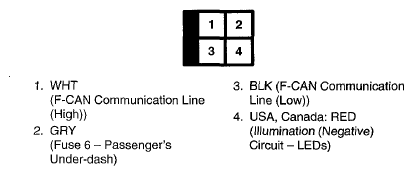

  Fig 3: Center Junction Box Connector Terminal (Connector C) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector D
- WHT

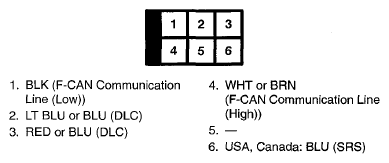

  Fig 4: Center Junction Box Connector Terminal (Connector D) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector E
- GRY

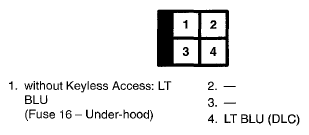

  Fig 5: Center Junction Box Connector Terminal (Connector E) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector F
- BLU

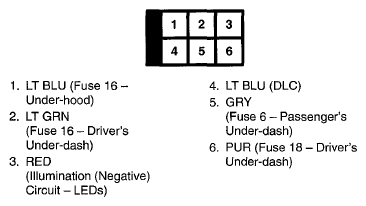

  Fig 6: Center Junction Box Connector Terminal (Connector F) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector G
- BRN

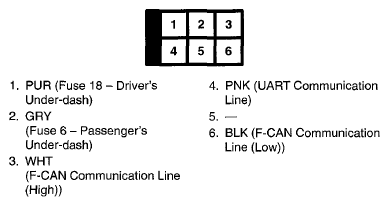

  Fig 7: Center Junction Box Connector Terminal (Connector G) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector H
- WHT

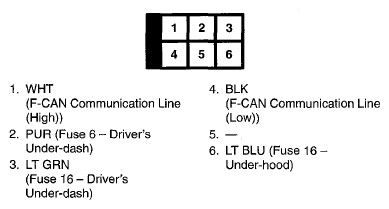

  Fig 8: Center Junction Box Connector Terminal (Connector H) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector J
- WHT

  Fig 9: Center Junction Box Connector Terminal (Connector J) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector K
- WHT

  Fig 10: Center Junction Box Connector Terminal (Connector K) (View 324)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
