C761 Connector End View (View 309)
C761 Connector End View (View 309)
WHT
Right A-pillar
Connects Front Passenger's Door Wire Harness to Dashboard Wire Harness

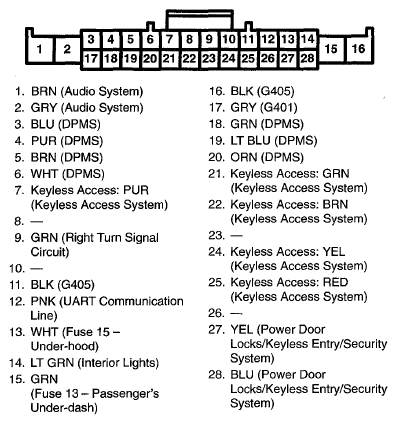

Fig 1: C761 Connector Terminal (View 309)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
