'09 Model without SH-AWD

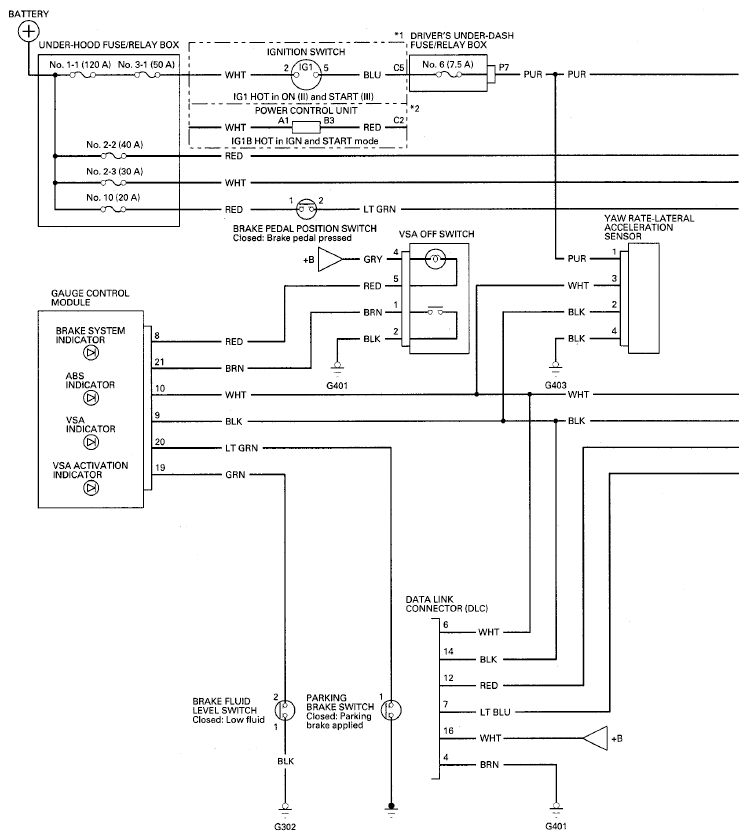

Fig 1: VSA (Vehicle Stability Assist) System Circuit Diagram - 09 Model Without SH-AWD (1 Of 2)
G06680176Courtesy of AMERICAN HONDA MOTOR CO., INC.

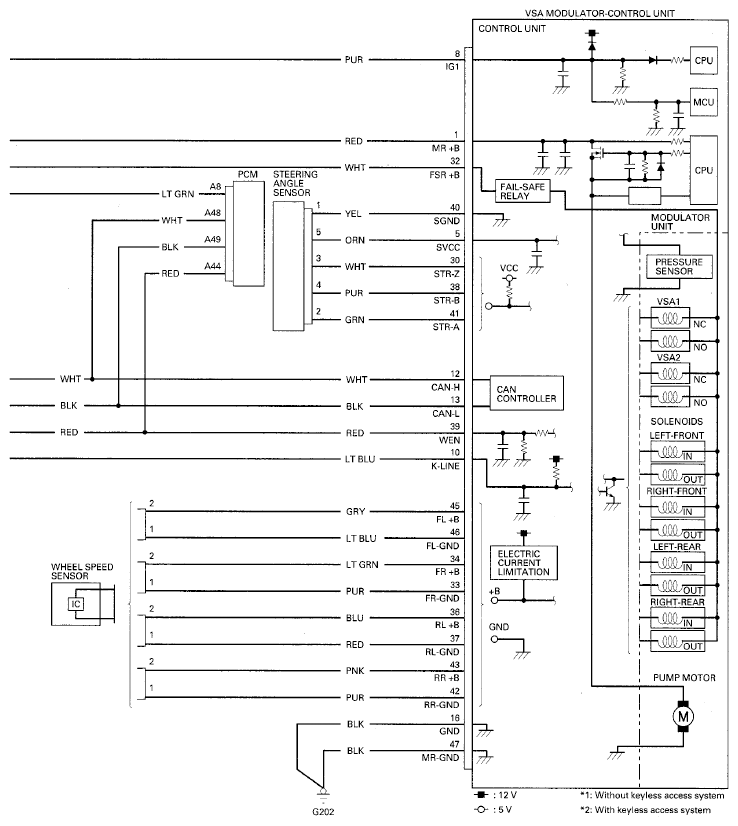

Fig 2: VSA (Vehicle Stability Assist) System Circuit Diagram - 09 Model Without SH-AWD (2 Of 2)
G06680177Courtesy of AMERICAN HONDA MOTOR CO., INC.
