Component Location Index

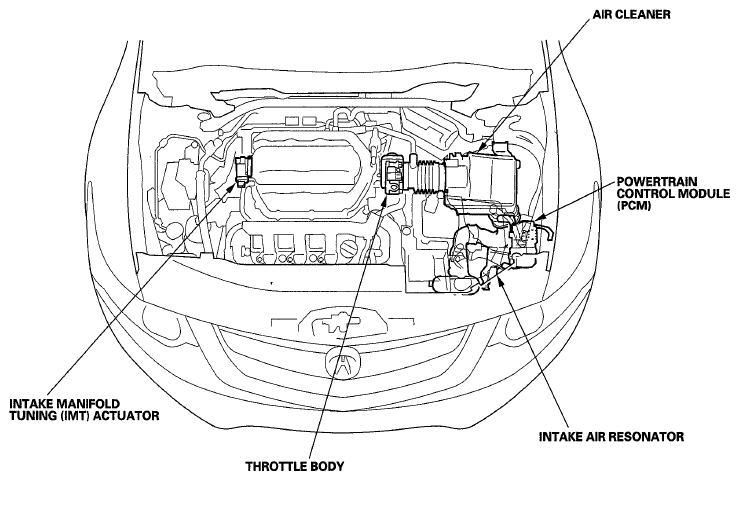

Fig 1: Identifying Intake Air System Component Location

G06425403

Courtesy of AMERICAN HONDA MOTOR CO., INC.
