TPMS Control Unit (L4) Connector End View

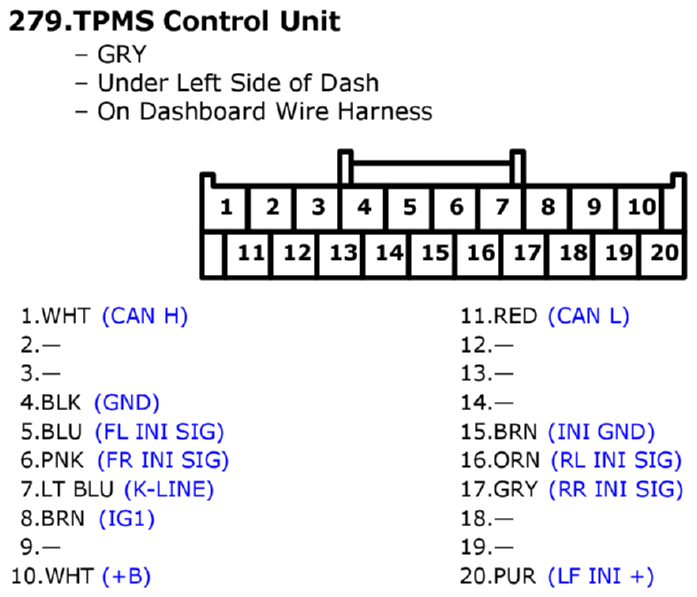

Fig 1: TPMS Control Unit (L4) Connector End View

GHHW12032

Courtesy of AMERICAN HONDA MOTOR CO., INC.
