Front Subframe Torque

After removing the subframe mounting bolts, the front suspension subframe middle rubber mount mounting bolts, the front suspension subframe rear bracket mounting bolts, and the rear engine mounting base bracket mounting bolts, be sure to replace them with new ones

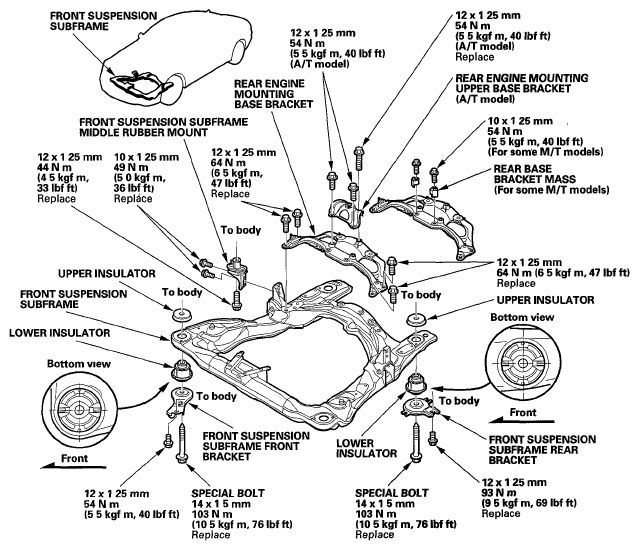

Fig 1: Exploded View Of Subframe With Torque Specifications
G05994578Courtesy of AMERICAN HONDA MOTOR CO., INC.
