Millimeter Wave Radar Unit Connector End View

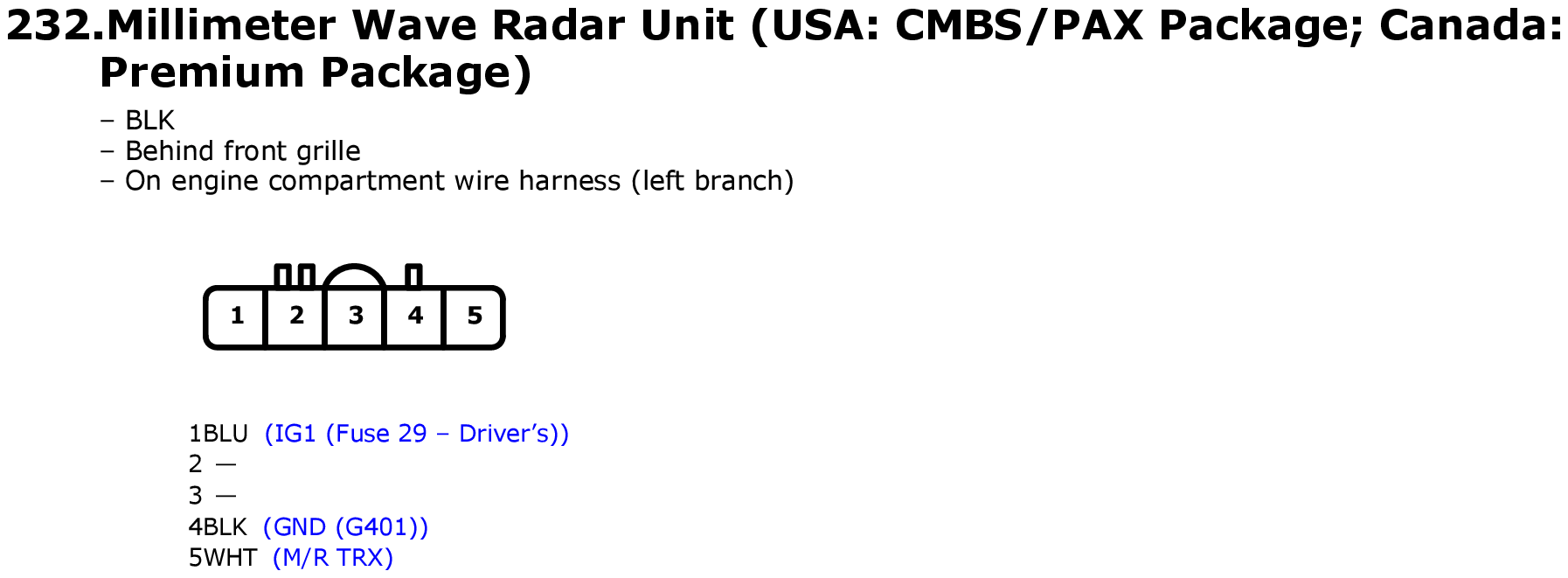

Fig 1: Millimeter Wave Radar Unit Connector End View

GHHW10088

Courtesy of AMERICAN HONDA MOTOR CO., INC.
