Driver's Lumbar Support Switch Connector End View

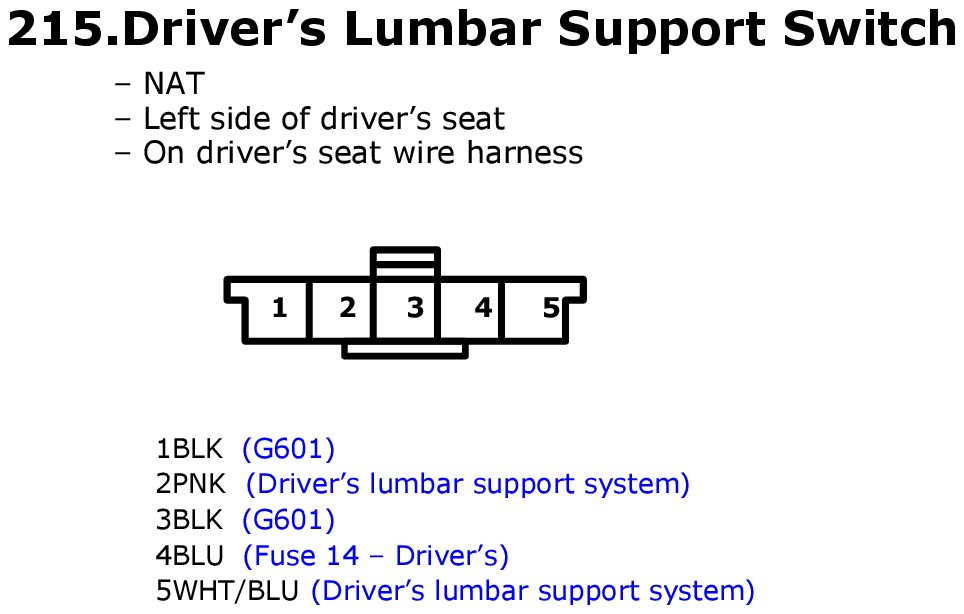

Fig 1: Driver's Lumbar Support Switch Connector End View

GHHW10071

Courtesy of AMERICAN HONDA MOTOR CO., INC.
