C773 Connector End View

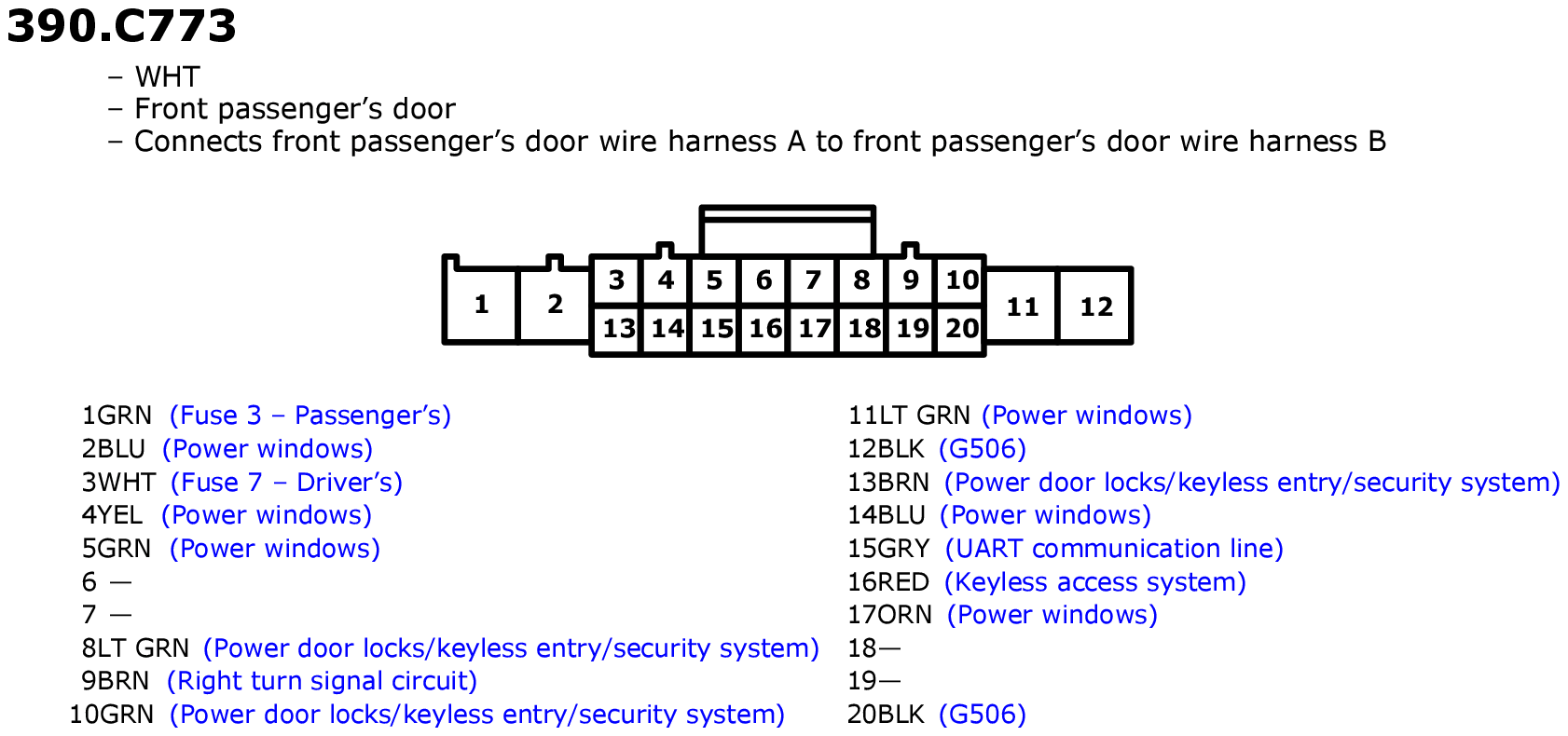

Fig 1: C773 Connector End View

GHHW10246

Courtesy of AMERICAN HONDA MOTOR CO., INC.
