C772 Connector End View

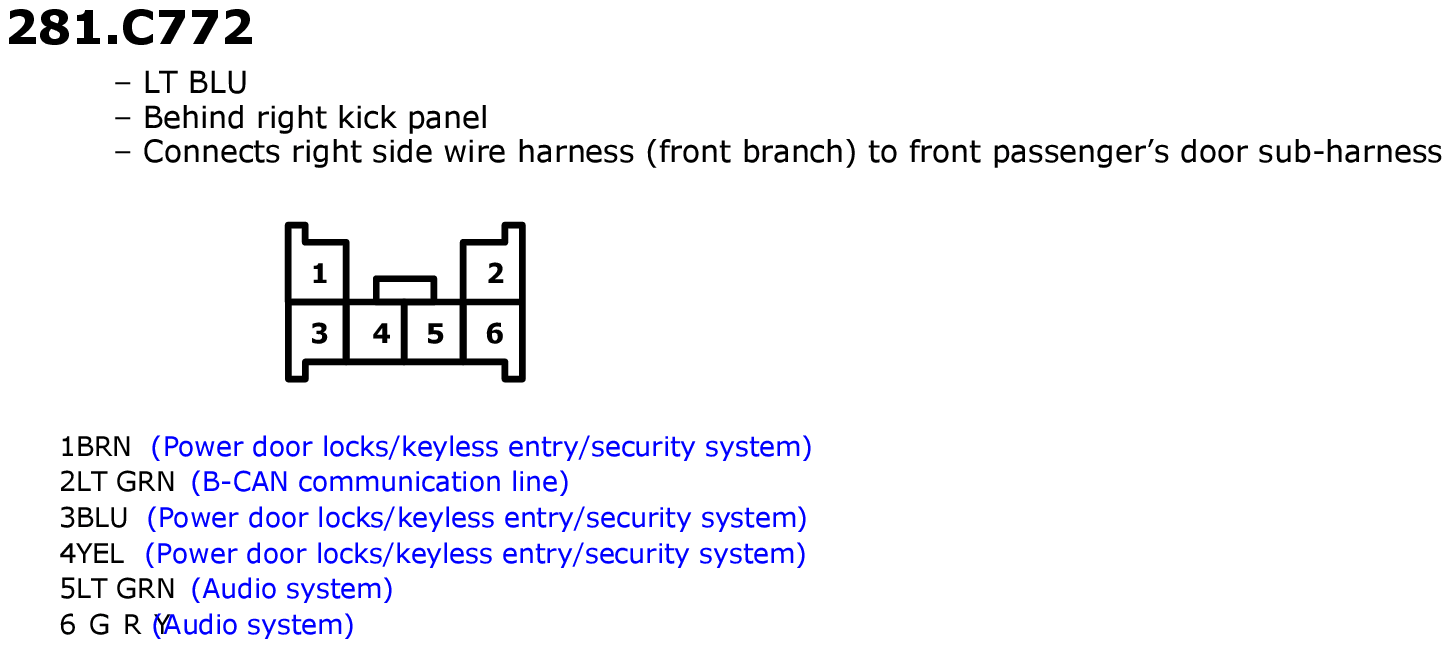

Fig 1: C772 Connector End View

GHHW10137

Courtesy of AMERICAN HONDA MOTOR CO., INC.
