Brake Fluid Pressure Sensor

The brake fluid pressure sensors are installed in the right and left sides of the brake line 4-way joint. The brake fluid pressure is converted to a signal (voltage value) and is output to the ACC unit. The ACC unit is always monitoring the ACC brake operation and the brake pressure controlled by the signal sent from the brake fluid pressure sensor.

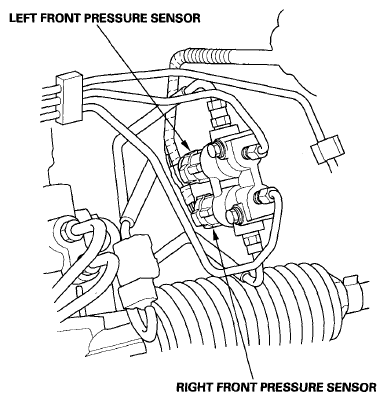

Fig 1: Identifying Brake Fluid Pressure Sensor (Left And Right)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
