ACC Unit

The ACC unit obtains information from external sensors and switches that are connected to their respective control units.

ACC Operation Range:

• Setting speed range is 25-90 mph (20-145 km/h)
• Setting following distance from vehicle ahead is 1.0-2.0 seconds
• Maximum deceleration is 0.30 G

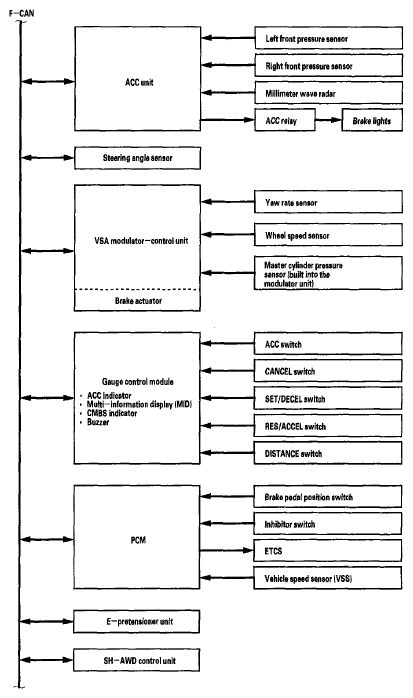

Fig 1: ACC Control Unit Function Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
