Navigation Unit (USA/Canada: except Base) Connector End View

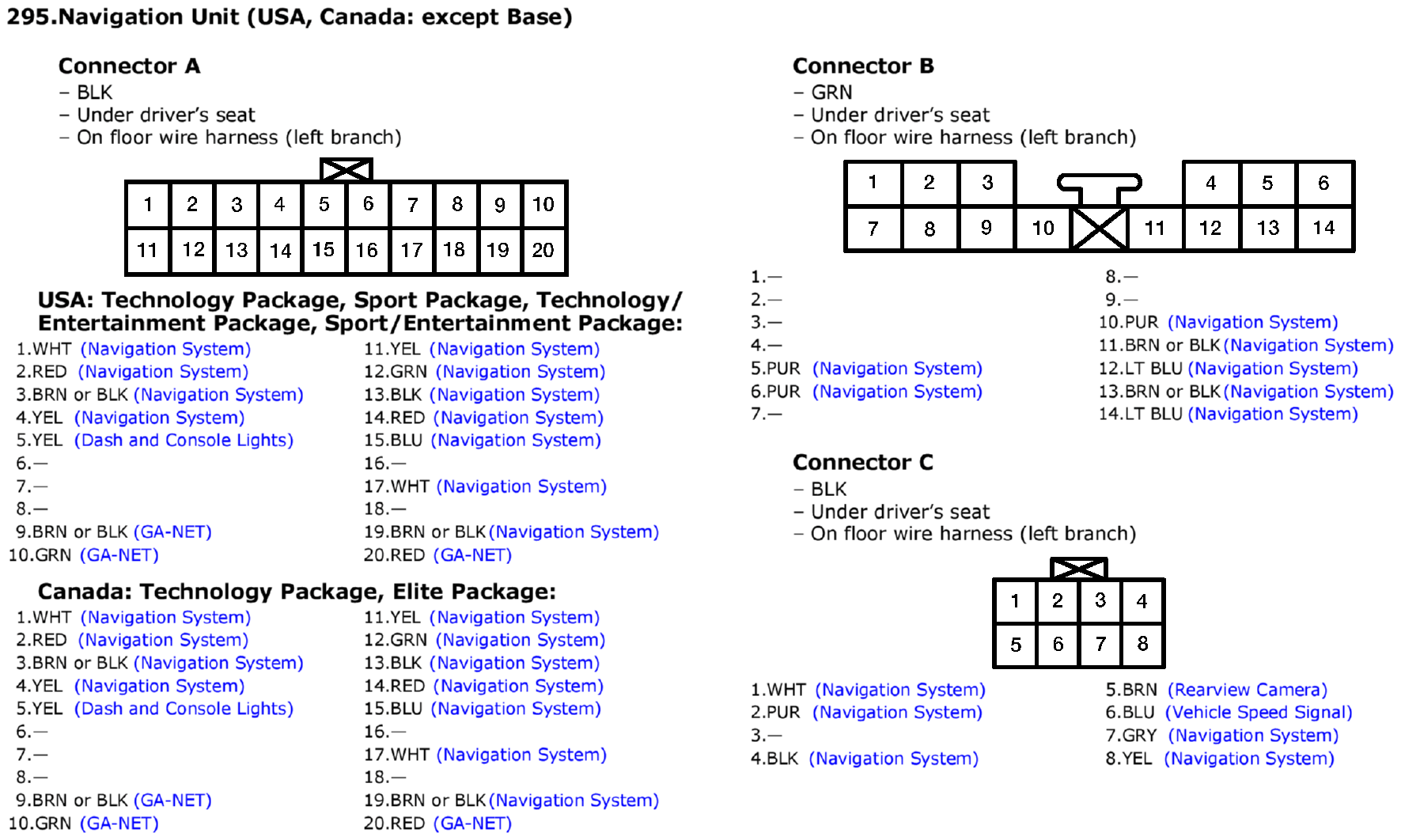

Fig 1: Navigation Unit (USA/Canada: except Base) Connector End View

GHHW7722

Courtesy of AMERICAN HONDA MOTOR CO., INC.
