Driver's Power Lumbar Support Motor Connector End View

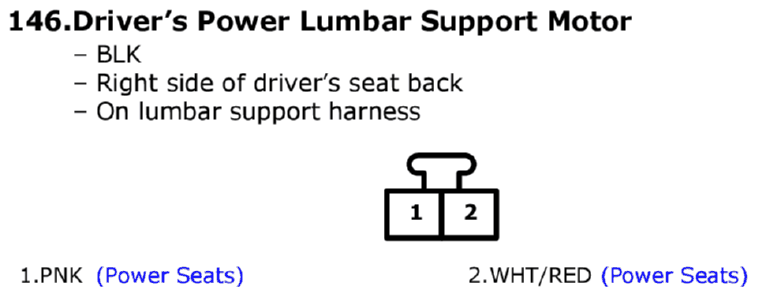

Fig 1: Driver's Power Lumbar Support Motor Connector End View

GHHW7573

Courtesy of AMERICAN HONDA MOTOR CO., INC.
