Section 47 (Audio System)
>>
System Description
>>
Audio Unit Connector for Inputs and Outputs (Without Navigation)
>>
Without Navigation
Without Navigation
WARNING:
This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

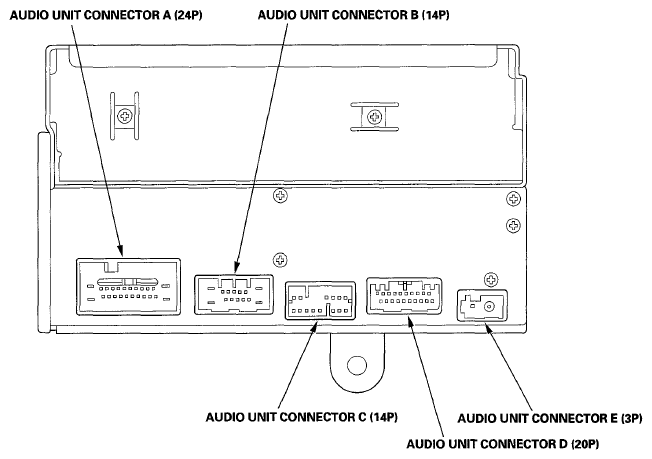

Fig 1: Identifying Audio Unit Connectors - Without Navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
