Exploded View (SH-AWD model right side)

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

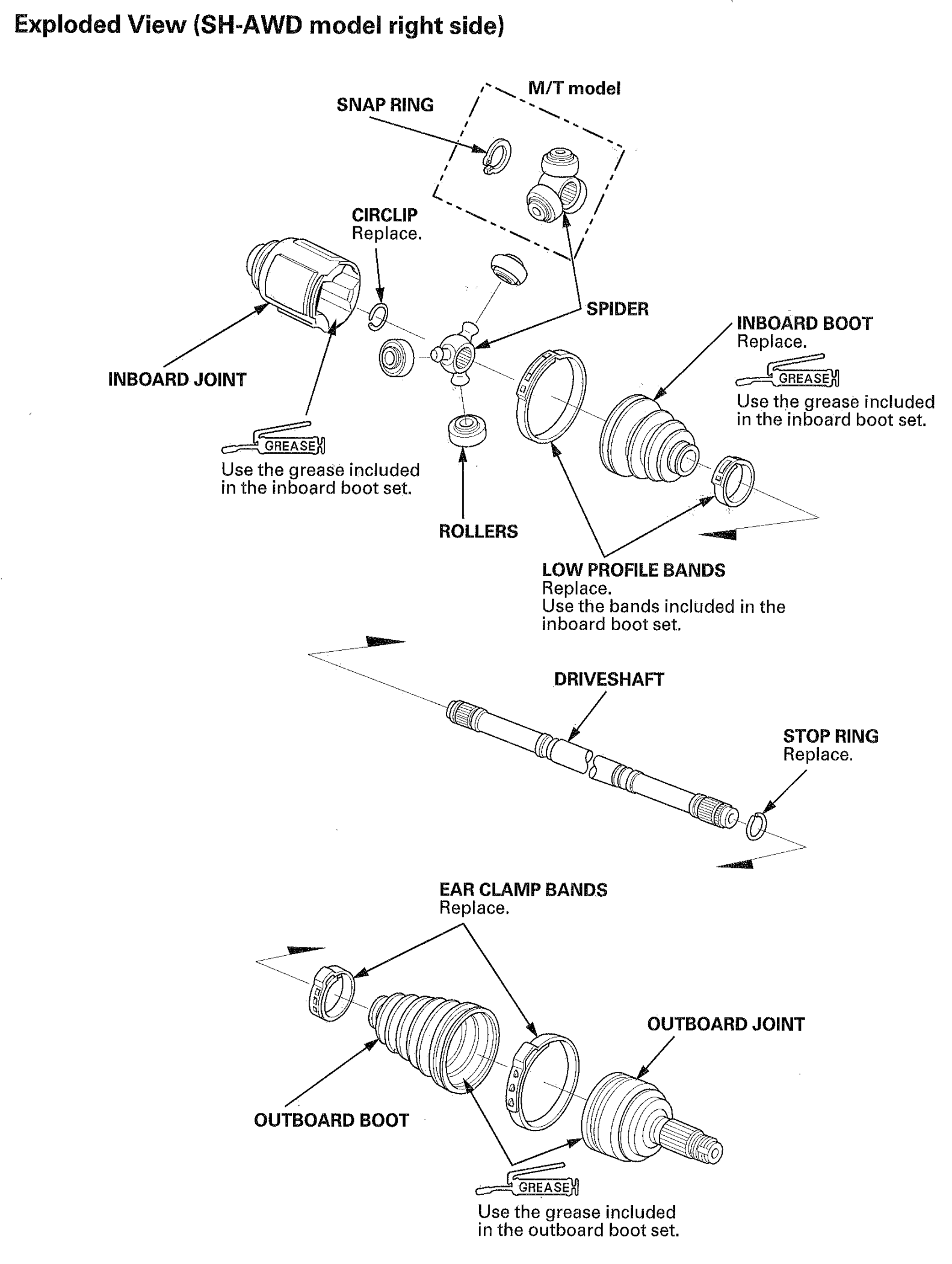

Fig 1: Exploded View Of Front Driveshaft Reassembly (SH-AWD Model Right Side)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot band tool, KD-3191 or equivalent, commercially available
Seal clamp tool, Kent-Moore J-35910 or equivalent, commercially available
Boot band pliers, commercially available

NOTE:

Refer to the EXPLODED VIEW, as needed, during this procedure
For SH-AWD model Make sure to use silicone-type (gray) boots on the right front driveshaft inboard joint
- Do not reuse the removed right front driveshaft inboard joint boot
- Make sure to use the boot bands and the grease included in the inboard boot set or the inboard joint set
