Acura
>>
2009
>>
CSX Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Reminder Systems
>>
Circuit Diagram
Circuit Diagram

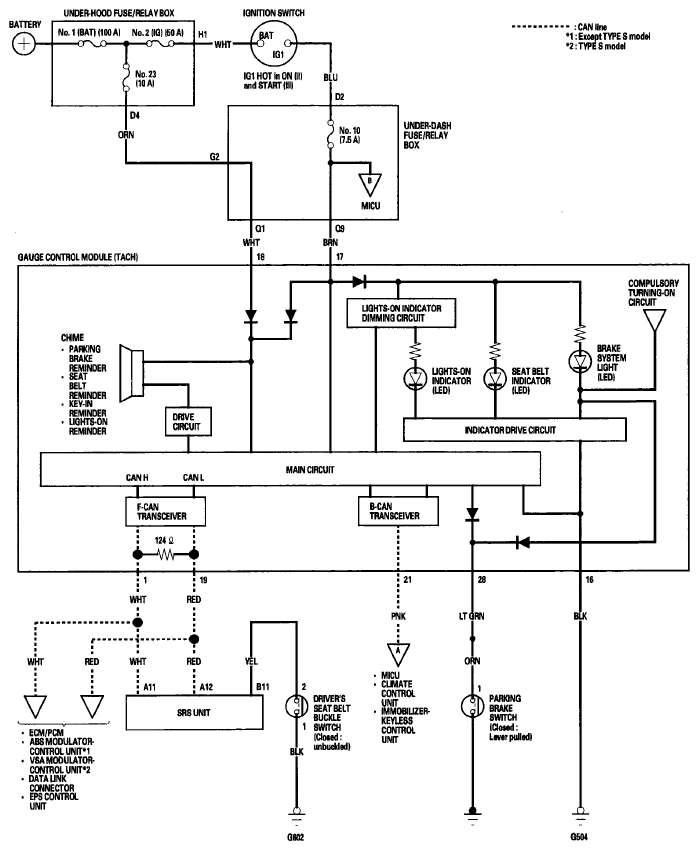

Fig 1: Reminder Systems - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

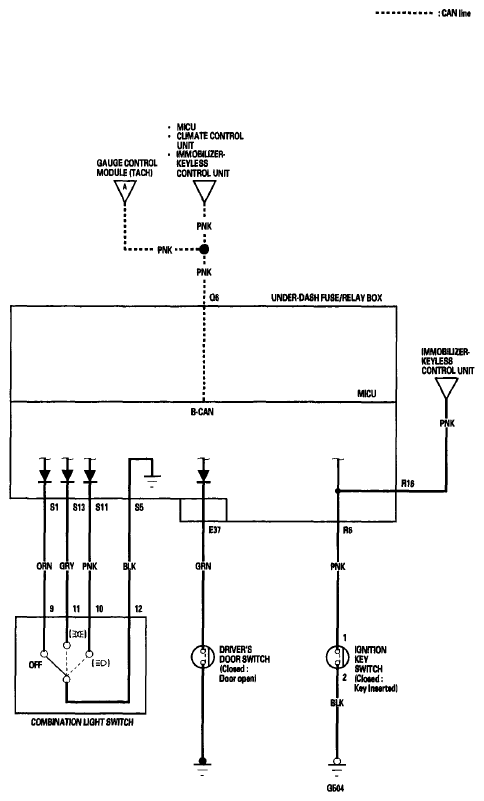

Fig 2: Reminder Systems - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
