Exploded View-K20Z3

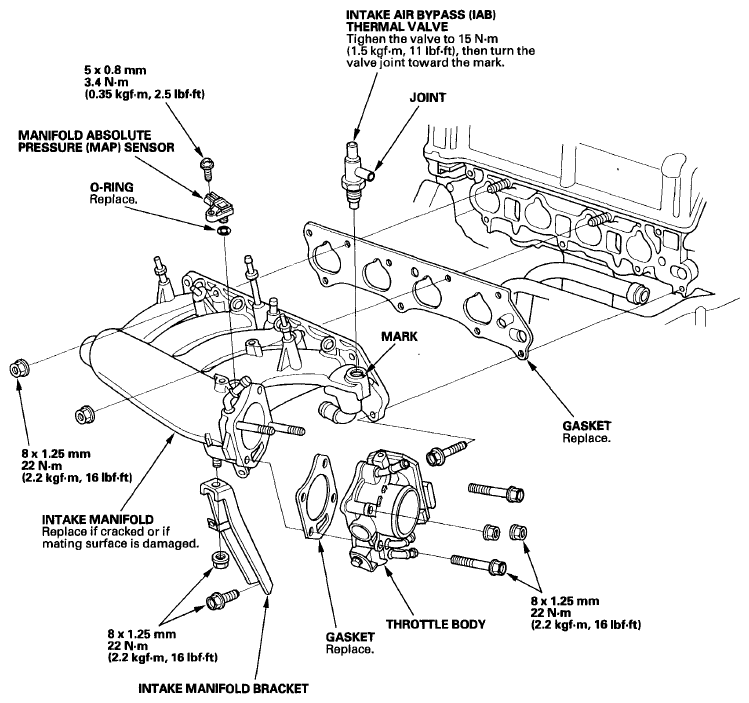

Fig 1: Exploded View Of Intake Manifold (K20Z3) With Torque Specifications

G06265706

Courtesy of AMERICAN HONDA MOTOR CO., INC.
