Under-Hood Fuse/Relay Box Connector End View

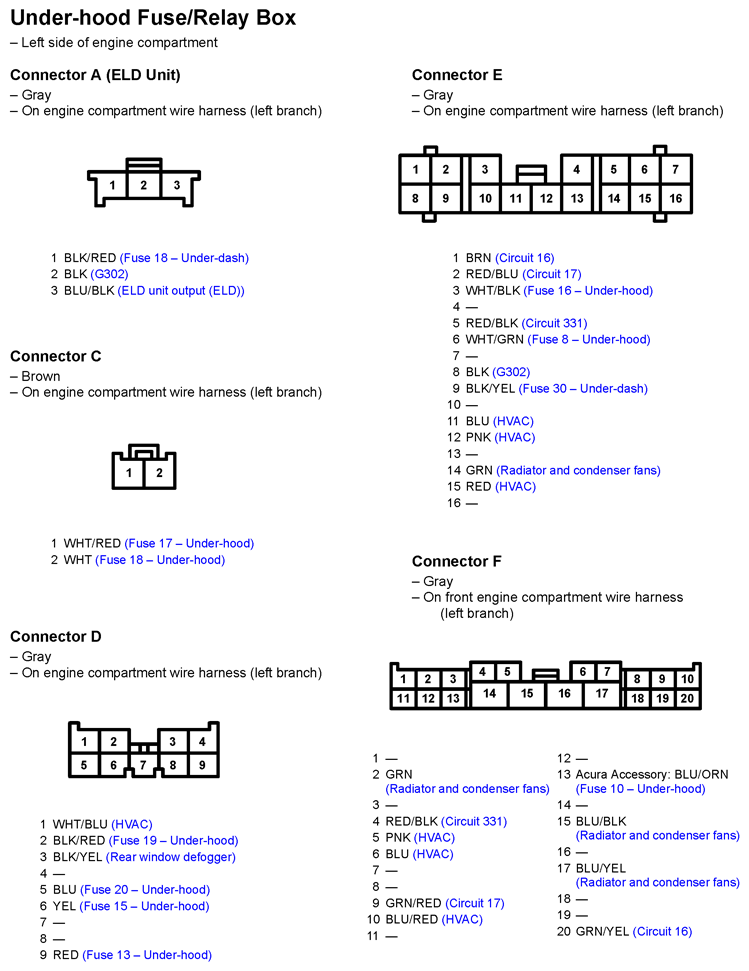

Fig 1: Under-Hood Fuse/Relay Box Connector End View (1 Of 2)

G11249512

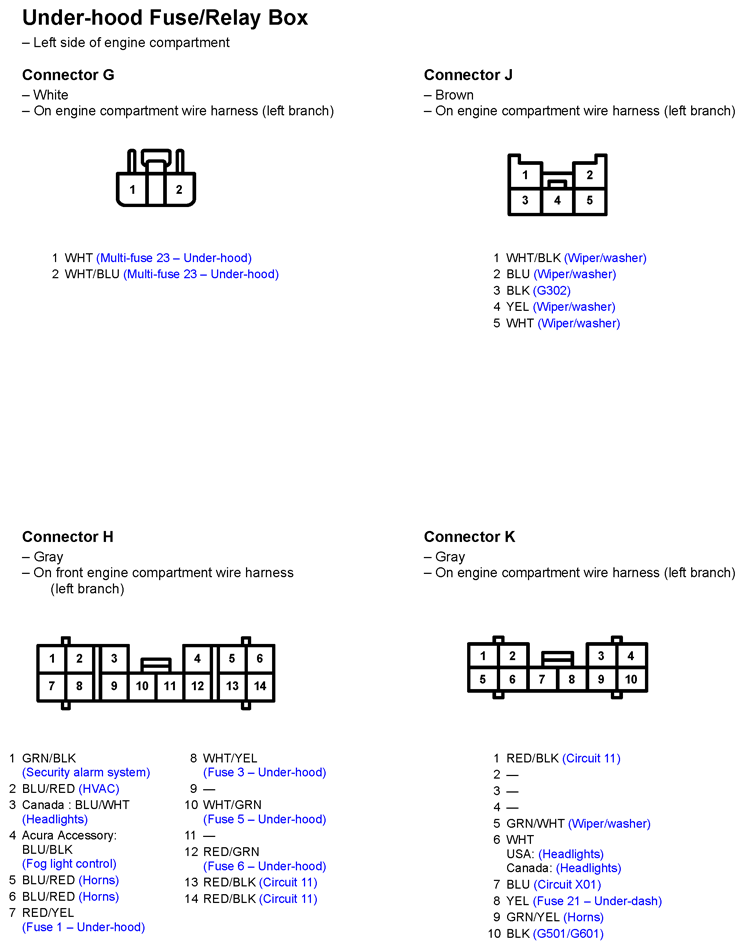

Fig 2: Under-Hood Fuse/Relay Box Connector End View (2 Of 2)

G11249513
