Rear Junction Block Connector End View

Fig 1: Rear Junction Block Connector End View (1 Of 3)
G11249500

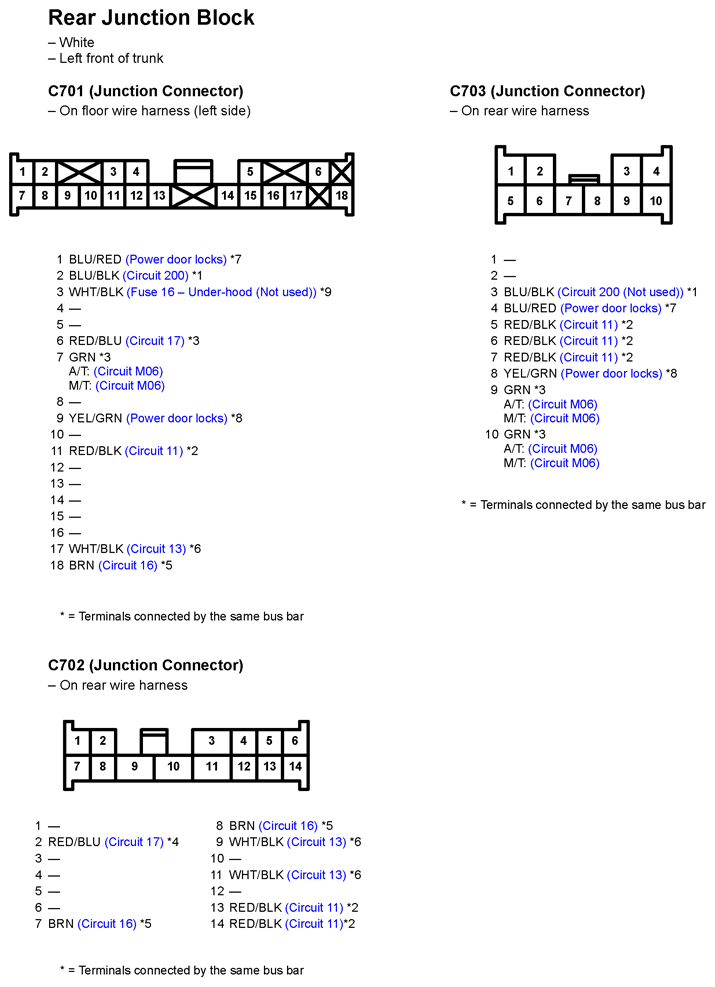

Fig 2: Rear Junction Block Connector End View (2 Of 3)
G11249501
Fig 3: Rear Junction Block Connector End View (3 Of 3)
G11249502
