Navigation Display Unit (Navigation) Connector End View
Navigation Display Unit (Navigation) Connector End View

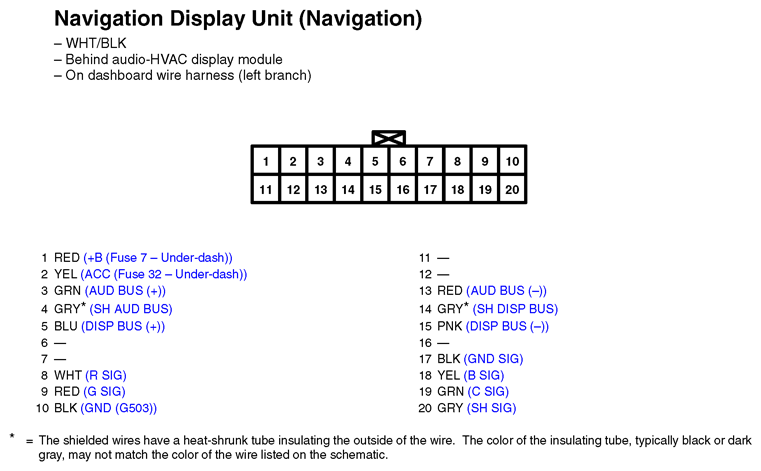

Fig 1: Navigation Display Unit (Navigation) Connector End View
